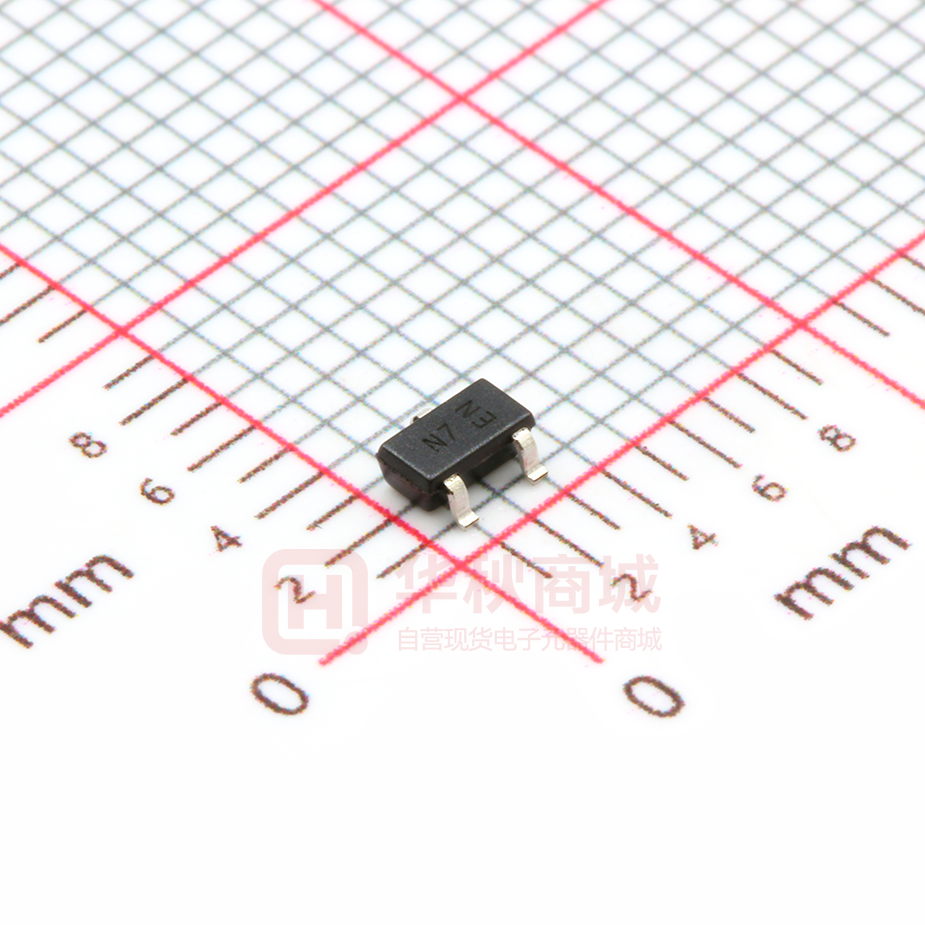

DMN1019USN-7

DMN1019USN 12V N-CHANNEL ENHANCEMENT MODE MOSFET Features V(BR)DSS RDS(ON) MAX 12V 10mΩ @ VGS = 4.5V 12mΩ @ VGS = 2.5V 14mΩ @ VGS = 1.8V 18mΩ @ VGS = 1.5V 41mΩ @ VGS = 1.2V • ID TA = +25°C 9.3A 8.5A 7.9A 6.9A 4.6A This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications Load Switch • DC-DC Converters • Power Management Functions ESD Protected Gate • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3)  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data Description • Low On-Resistance • • Case: SC59 • Case Material – Molded Plastic. UL Flammability Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish - Matte Tin Solderable per MIL-STD-202, • Method 208 e3 Terminal Connections: See Diagram • Weight: 0.014 grams (approximate) SC59 D D G Gate Protection Diode S G ESD PROTECTED Top View Pin Configuration Top View S Equivalent Circuit Ordering Information (Note 4) Part Number DMN1019USN-7 DMN1019USN-13 Notes: Case SC59 SC59 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
