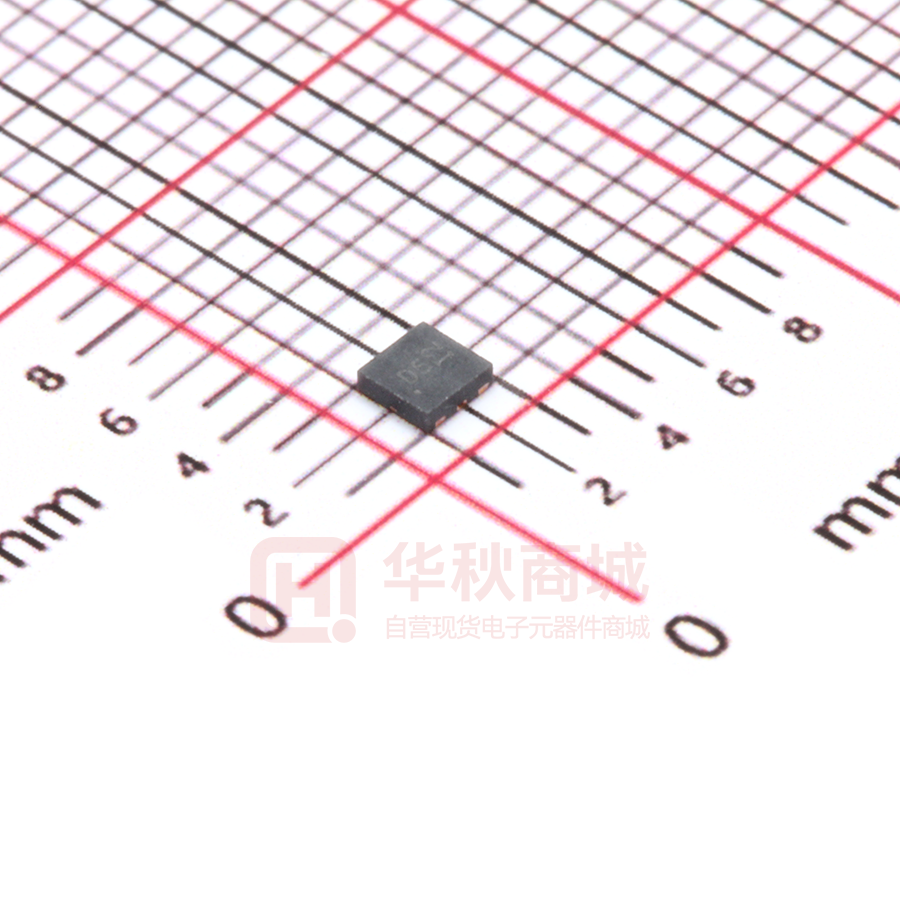

DMN1029UFDB-7

DMN1029UFDB N-CHANNEAL ENHANCEMENT MODE MOSFET Product Summary Features BVDSS RDS(ON) Max ID MAX TA = +25°C 12V 29mΩ @ VGS = 4.5V 34mΩ @ VGS = 2.5V 44mΩ @ VGS = 1.8V 65mΩ @ VGS = 1.5V 5.6A 5.1A 4.5A 3.7A       Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.    Mechanical Data   Applications   Load Switch Power Management Functions Portable Power Adaptors Low On-Resistance Low Input Capacitance Low Profile, 0.6mm Max Height Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/   Case: U-DFN2020-6 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Terminals Connections: See Diagram Below Weight: 0.0065 grams (Approximate) U-DFN2020-6 (Type B) D1 D2 S2 G2 D2 D1 D1 G1 G2 D2 G1 S1 S2 Q1 N-CHANNEL MOSFET Q2 N-CHANNEL MOSFET S1 Pin1 Bottom View Internal Schematic Ordering Information (Note 4) Part Number DMN1029UFDB -7 DMN1029UFDB -13 Notes: Case U-DFN2020-6 (Type B) U-DFN2020-6 (Type B) Packaging 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
