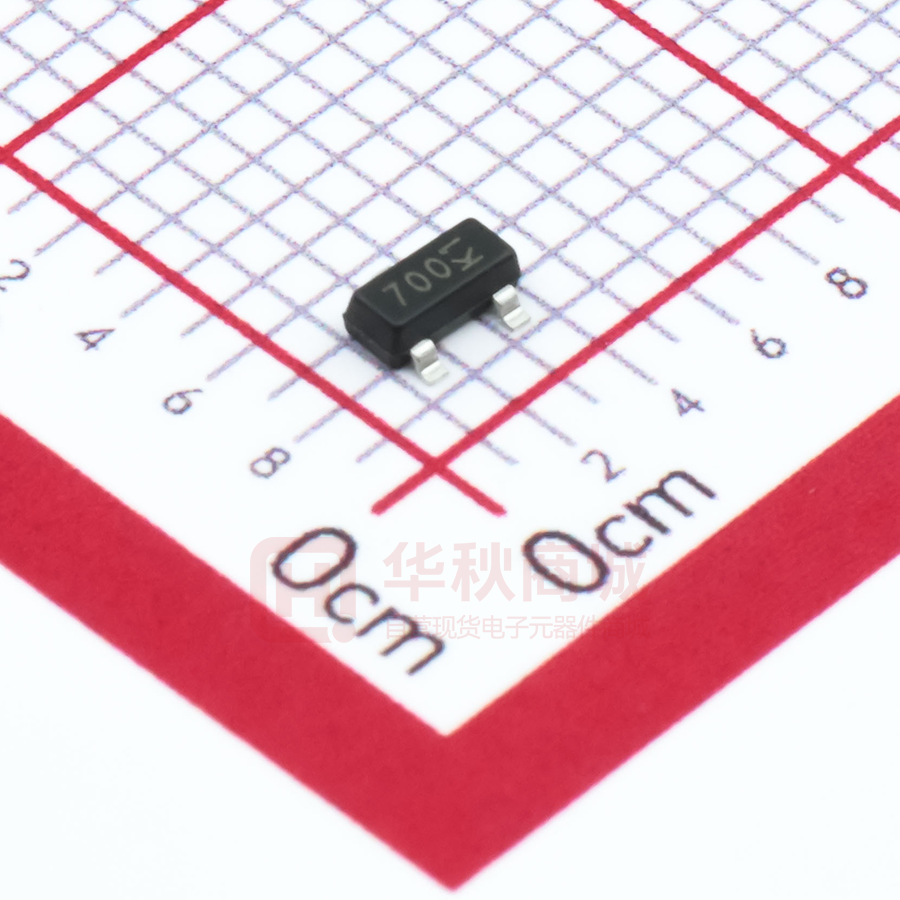

DMN10H700S
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON)
ID
TA = +25°C
700mΩ @ VGS = 10V
0.70A
900mΩ @ VGS = 6.0V
0.62A
BVDSS
PRODUCT
INFORMATION
ADVANCED NEW
Features and Benefits
100V
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
Mechanical Data
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(ON)) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe).
Terminal Connections: See Diagram
Weight: 0.006 grams (Approximate)
DC-DC Converters
Power Management Functions
Battery Operated Systems and Solid-State Relays
Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc.
D
D
G
S
G
S
Top View
Pin Configuration
Top View
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMN10H700S-7
DMN10H700S-13
Notes:
Case
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
