DMN2011UFX
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
ADVANCED INFORMATION
Product Summary
Features and Benefits
V(BR)DSS
RDS(ON) max
20V
9.5mΩ @ VGS = 4.5V
13mΩ @ VGS = 2.5V
ID max
TA = +25°C
12.2 A
10.4 A
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
Mechanical Data
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it

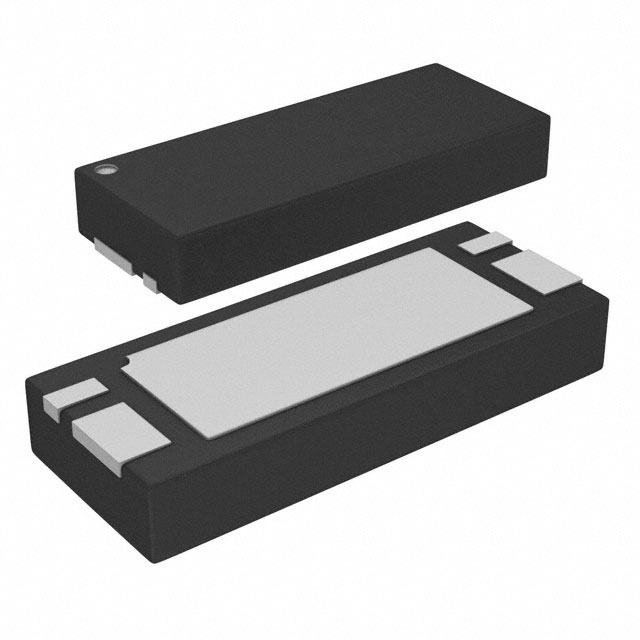

Case: V-DFN2050-4
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.01 grams (Approximate)
ideal for high-efficiency power management applications.
General Purpose Interfacing Switch
Power Management Functions
G1 S1
V-DFN2050-4
D
D
D1/D2
G2
G1
ESD PROTECTED
Gate Protection
Diode
Top View
G2 S2
Top View
Pin-Out
Bottom View
S1
Gate Protection
Diode
S2
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMN2011UFX-7
Notes:
Case
V-DFN2050-4
Packaging
3,000 / Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.htmlfor more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
