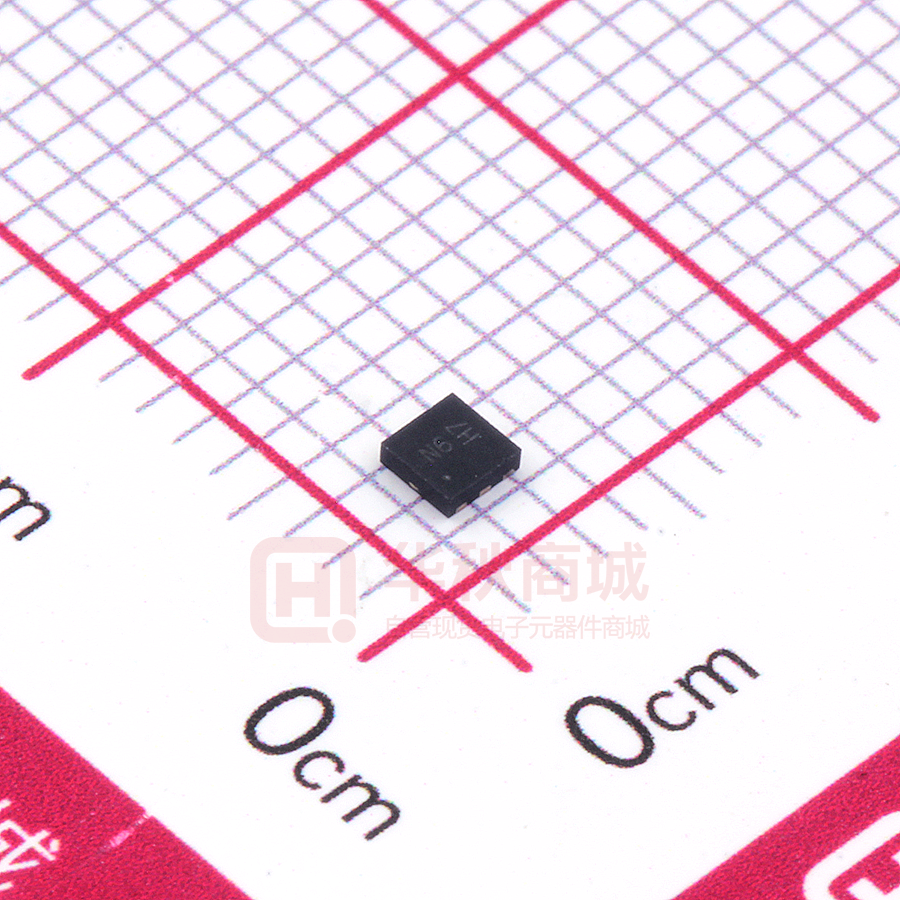

DMN2013UFDE
20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS
RDS(ON) MAX
11m @ VGS = 4.5V
13mΩ @ VGS = 2.5V
20V
30m @ VGS = 1.8V
50mΩ @ VGS = 1.5V
Features
ID
TA = +25°C
Package
U-DFN2020-6
(Type E)
U-DFN2020-6
(Type E)
U-DFN2020-6
(Type E)
U-DFN2020-6
(Type E)
10.5A
9.4A
6.5A
5.5A
Description
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Mechanical Data
Applications
General Purpose Interfacing Switch
Power Management Functions
0.6mm Profile – Ideal for Low Profile Applications
PCB Footprint of 4mm2
Low Gate Threshold Voltage
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
An Automotive-Compliant Part is Available Under Separate
Datasheet (DMN2013UFDEQ)
Case: U-DFN2020-6
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe. Solderable
per MIL-STD-202, Method 208 e4
Weight: 0.0065 grams (Approximate)
U-DFN2020-6 (Type E)
ESD PROTECTED
Bottom View
Equivalent Circuit
Pin Out
Ordering Information (Note 4)
Notes:
Part Number
Compliance
Case
Quantity per Reel
DMN2013UFDE-7
DMN2013UFDE-13
Standard
Standard
U-DFN2020-6 (Type E)
U-DFN2020-6 (Type E)
3,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
