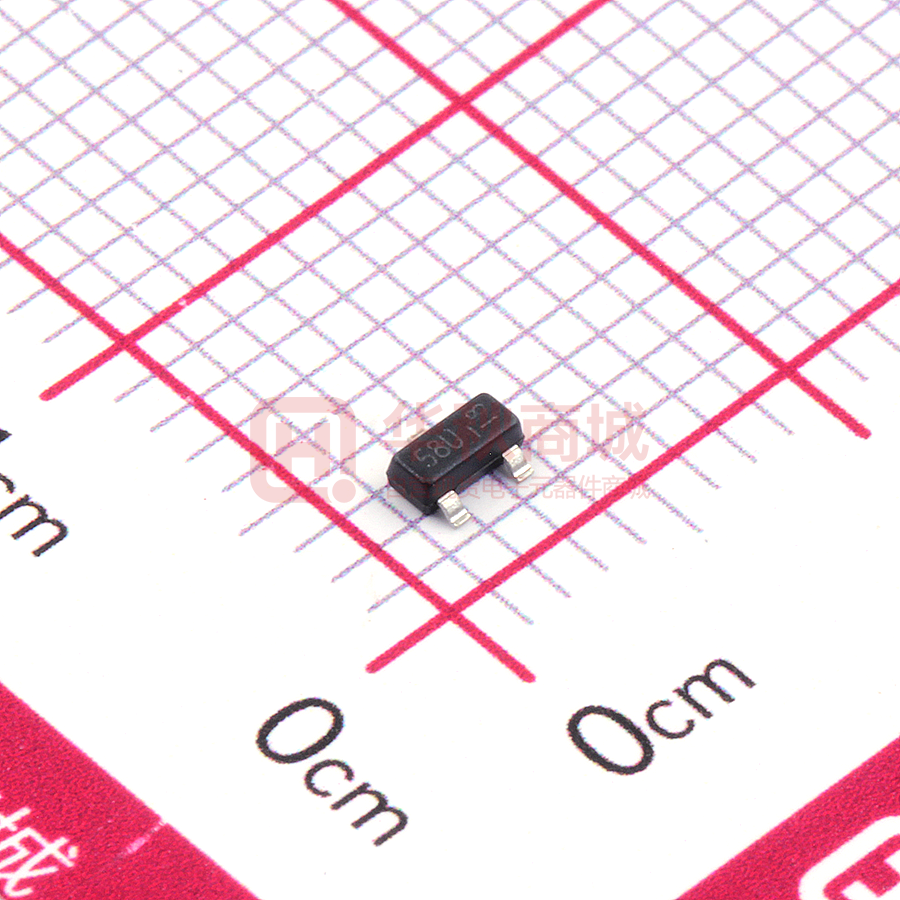

DMN2058U-7

DMN2058U 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS Features and Benefits RDS(ON) Max ID Max 35mΩ @ VGS = 10V 4.6A 40mΩ @ VGS = 4.5V 4.3A         20V Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 ideal for high efficiency power management applications.  Battery Charging  Power Management Functions  DC-DC Converters  Terminals Connections: See Diagram Below  Portable Power Adaptors  Weight: 0.009 grams (Approximate) D D G Top View S G S Top View Internal Schematic Ordering Information (Note 4) Part Number DMN2058U-7 DMN2058U-13 Notes: Case SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
