NOT RECOMMENDED FOR NEW DESIGN
USE DMN2058UW

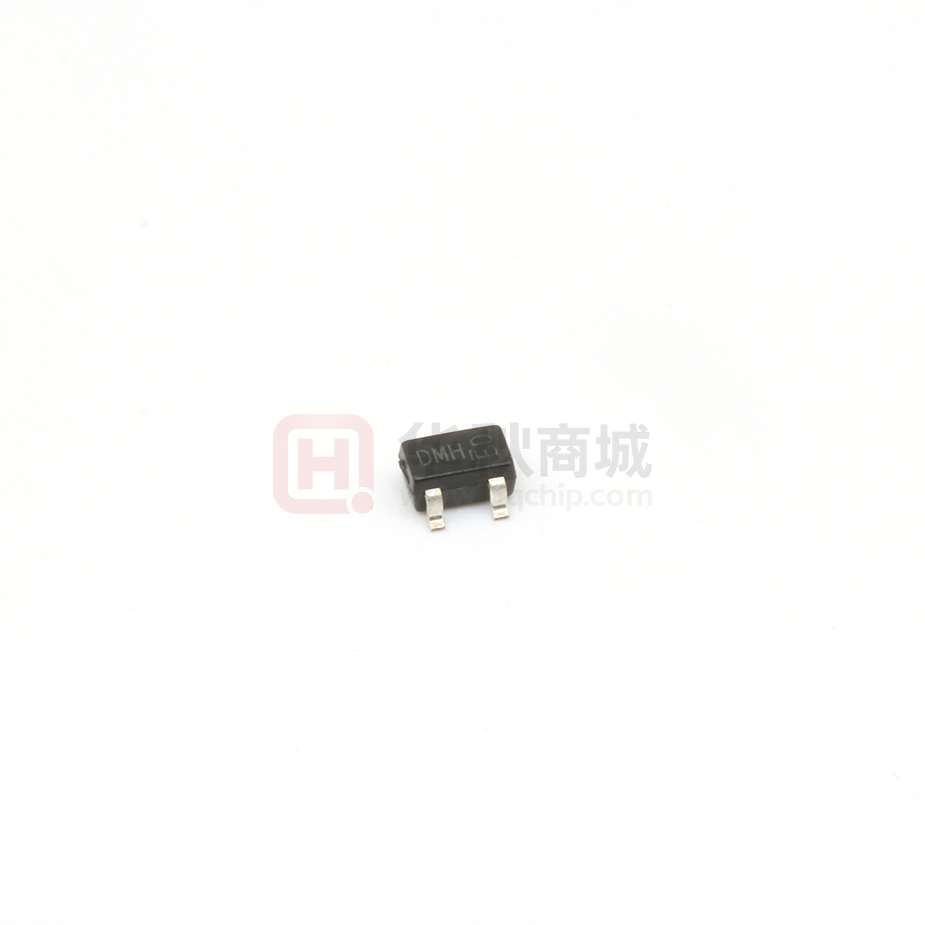

DMN2065UW
20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) Max
ID Max
TA = +25°C
56mΩ @ VGS = 4.5V
2.8A
65mΩ @ VGS = 2.5V
2.6A
93mΩ @ VGS = 1.8V
2.2A
140mΩ @ VGS = 1.5V
1.8A
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (DMN2065UWQ)
Description and Applications
Mechanical Data
This MOSFET has been designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
General Purpose Interfacing Switch
Power Management Functions
DC-DC Converters
Analog Switch

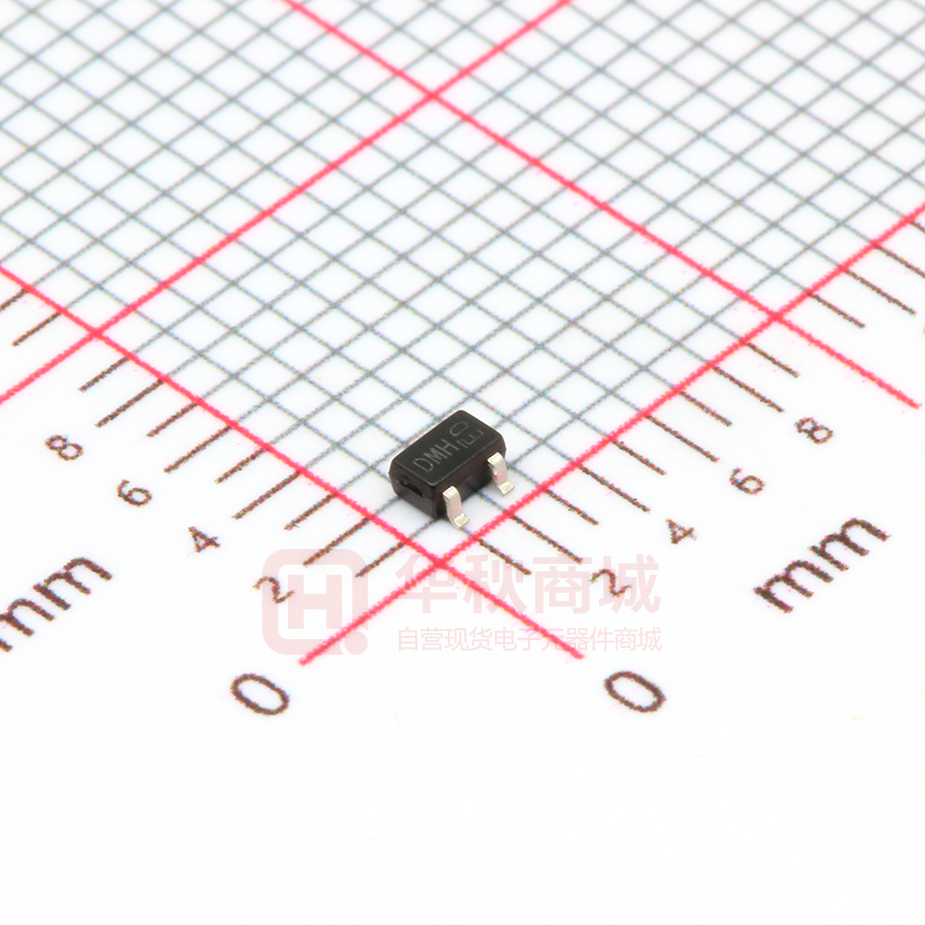

Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Alloy42 Leadframe.
Solderable per MIL-STD-202, Method 208 e3
Weight: 0.027 grams (Approximate)
D ra in
SOT323
D
G a te
G
S
S o u rc e
Top View
Equivalent Circuit
Top View
Ordering Information (Note 4)
Part Number
DMN2065UW-7
Notes:
Case
SOT323
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
