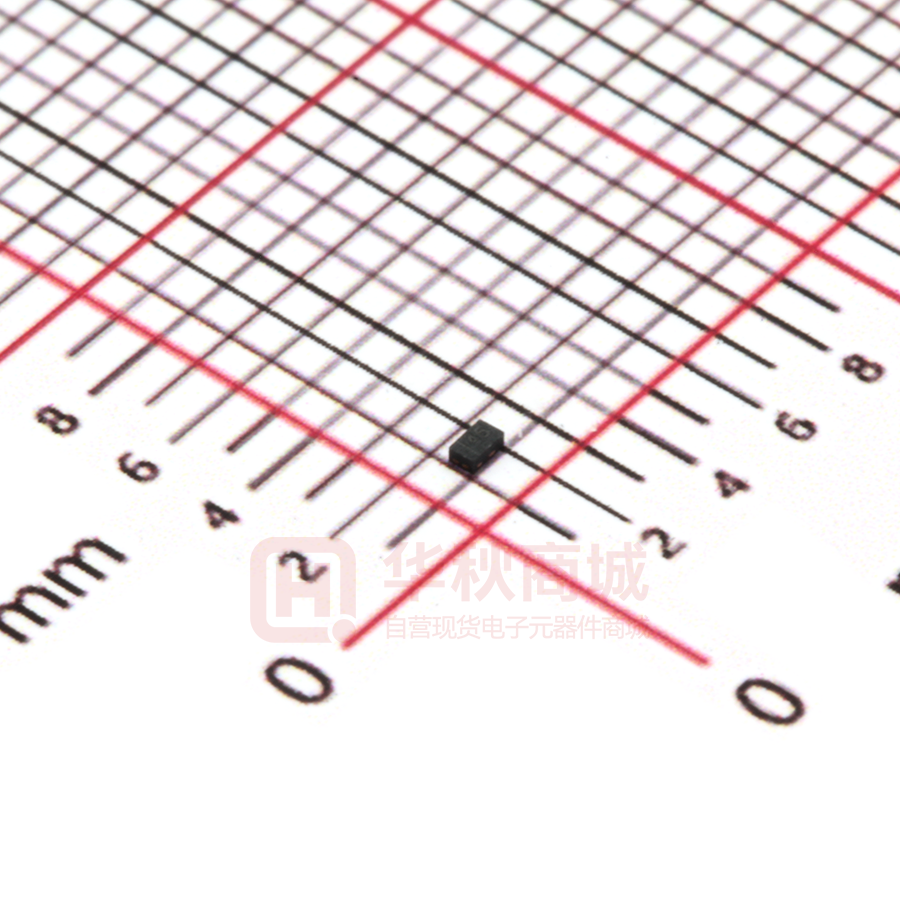

DMN2450UFB4-7B

DMN2450UFB4 N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary 0.4Ω @ VGS = 4.5V ID Max TA = +25°C 1.0A 0.5Ω @ VGS = 2.5V 0.9A 0.7Ω @ VGS = 1.8V 0.8A BVDSS 20V Features and Benefits RDS(ON) Max        Footprint of just 0.6mm2 – Thirteen Times Smaller than SOT23 0.4mm Profile – Ideal for Low Profile Applications Low Gate Threshold Voltage Fast Switching Speed ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.    Case: X2-DFN1006-3 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.001 grams (Approximate)   Load Switch  D X2-DFN1006-3 G S D G ESD Protected Gate Gate Protection Diode Equivalent Circuit Top View Internal Schematic Bottom View S Ordering Information (Note 4) Part Number DMN2450UFB4-7B DMN2450UFB4-7R Notes: Marking 45 45 Reel Size (inches) 7 7 Tape Width (mm) 8 8 Tape Pitch (mm) 2 4 Quantity per Reel 10,000 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
