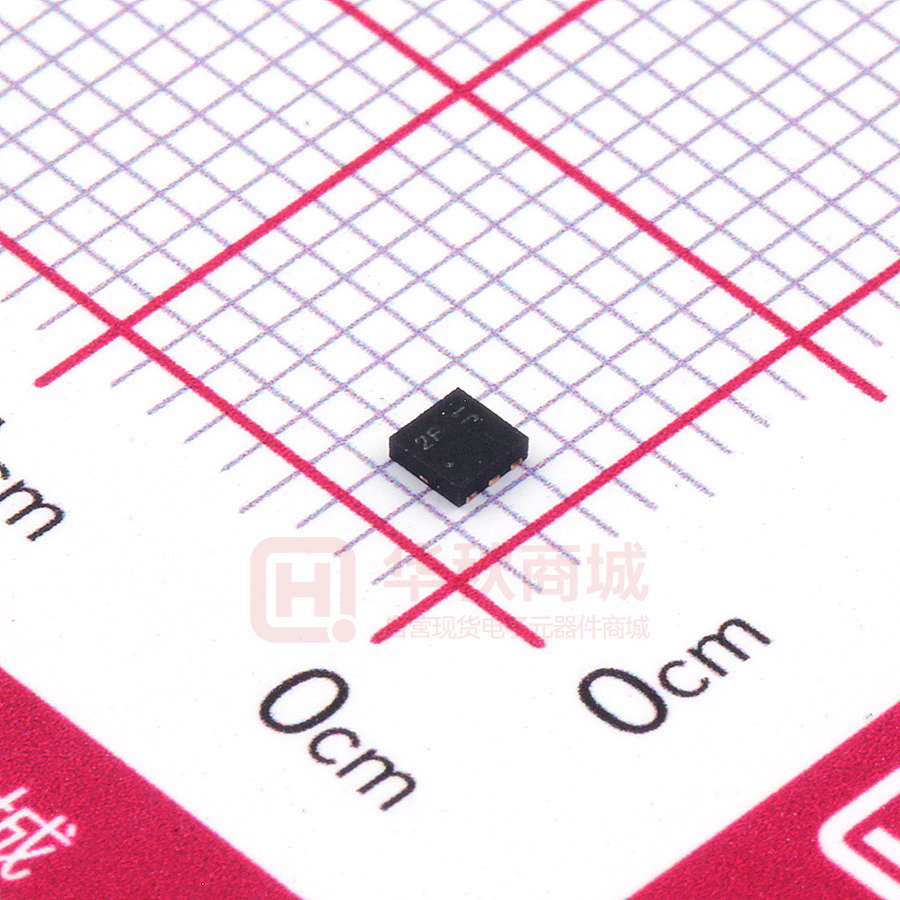

DMN3020UFDF
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS
Features
TC = +25°C
19mΩ @ VGS = 4.5V
15A
25mΩ @ VGS = 2.5V
14A
40mΩ @ VGS = 1.8V
10A
120mΩ @ VGS = 1.5V
6A
30V
ID Max
RDS(ON) Max
Description
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
Mechanical Data
ideal for high efficiency power management applications.
0.6mm Profile – Ideal for Low Profile Applications
PCB Footprint of 4mm2
Low Gate Threshold Voltage
Fast Switching Speed
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Battery Management Application
Power Management Functions
DC-DC Converters
Case: U-DFN2020-6
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.007 Grams (Approximate)
U-DFN2020-6 (Type F)
D
G
ESD PROTECTED
Gate Protection
Diode
Top View
Bottom View
Pin Out
Bottom View
S
Internal Schematic
Ordering Information (Note 4)
Part Number
DMN3020UFDF-7
DMN3020UFDF-13
Notes:
Case
U-DFN2020-6 (Type F)
U-DFN2020-6 (Type F)
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
