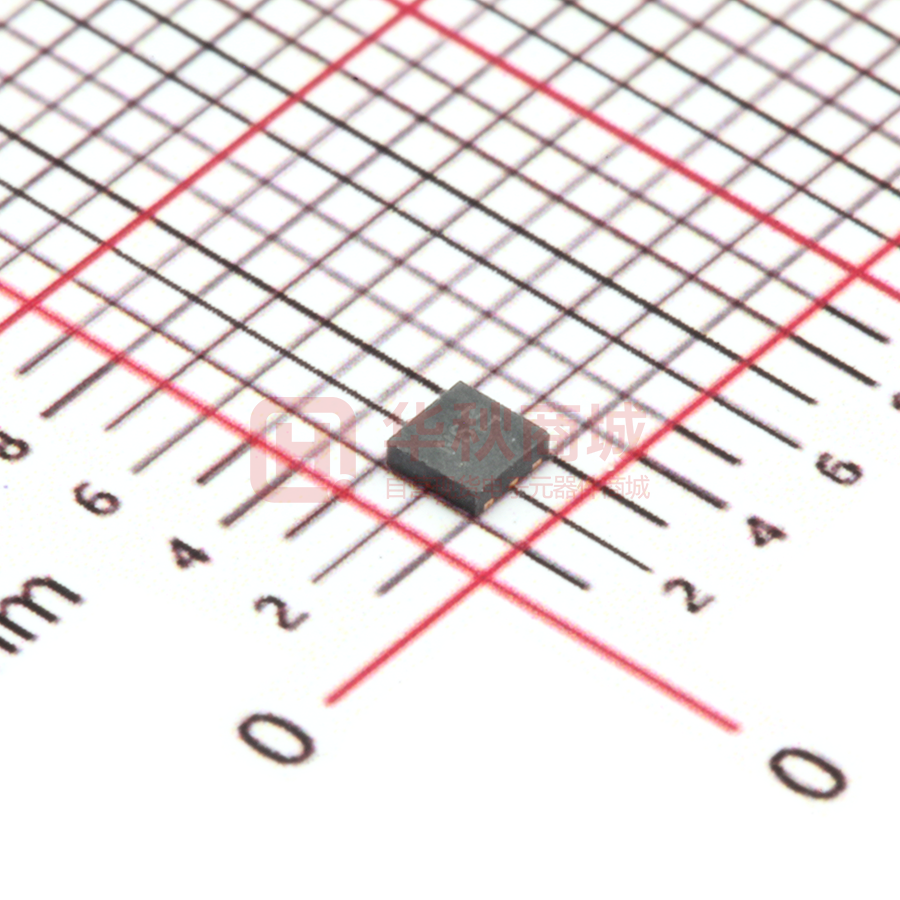

DMN3032LFDB-7

DMN3032LFDB DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS Features and Benefits ID Max TA = +25°C RDS(ON) Max 30mΩ @ VGS = 10V 6.2A 42mΩ @ VGS = 4.5V 5.2A 30V  Low On-Resistance  Low Input Capacitance  Fast Switching Speed  Low Input/Output Leakage  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. "Green" Device (Note 3)  For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DMN3032LFDBQ) Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.     Body Control Electronics Power Management Functions DC-DC Converters  Mechanical Data       Case: U-DFN2020-6 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish NiPdAu Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Terminals Connections: See Diagram Below Weight: 0.0065 grams (Approximate) U-DFN2020-6 (Type B) D2 D1 S2 G2 D2 D1 D1 G1 G2 D2 G1 S1 S1 Pin1 Bottom View S2 Internal Schematic Ordering Information (Note 4) Part Number DMN3032LFDB-7 DMN3032LFDB-13 Notes: Case U-DFN2020-6 (Type B) U-DFN2020-6 (Type B) Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
