DMN3042L
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS
Features and Benefits
RDS(on) max
ID max
26.5mΩ @ VGS = 10V
5.8A
32mΩ @ VGS = 4.5V
5.0A
30V
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Description and Applications
Mechanical Data
This MOSFET is designed to minimize the on-state resistance
(RDS(on)) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Battery charging
Power management functions
DC-DC converters
Portable power adaptors

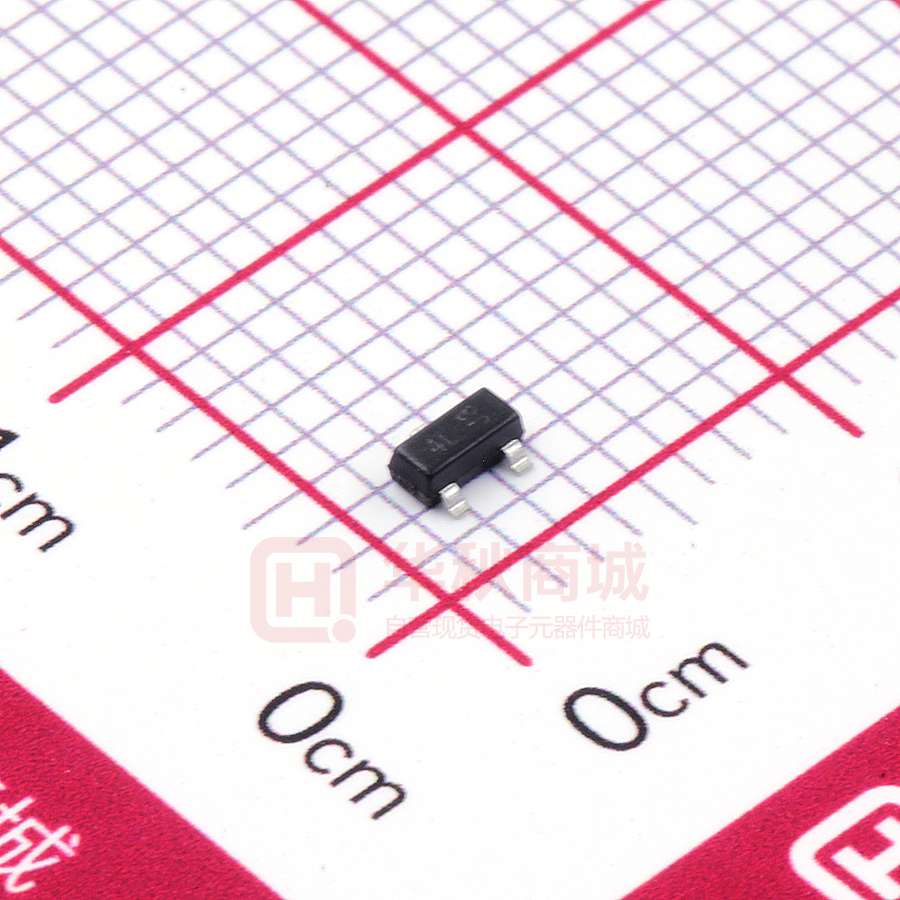

Package: SOT23 (Standard)
Package Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: FinishMatte Tin Annealed over Copper Lead-Frame.
Solderable per MIL-STD-202, Method 208
Terminals Connections: See Diagram Below
Weight: 0.008 grams (Approximate)
D
SOT23 (Standard)
D
G
S
G
S
Top View
Top View
Internal Schematic
Ordering Information
Notes:
Part Number
Package
DMN3042L-7
DMN3042L-13
SOT23 (Standard)
SOT23 (Standard)
Packing
Qty.
3,000
10,000
Carrier
Tape & Reel
Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
