DMN53D0LDW
DUAL N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
RDS(ON)
ID
TA = +25°C
•
Dual N-Channel MOSFET
•
Low On-Resistance
1.6Ω @ VGS = 10V
360mA
•
Low Input Capacitance
2.5Ω @ VGS = 4.5V
250mA
•
Fast Switching Speed
•
Small Surface Mount Package
V(BR)DSS
NEW PRODUCT
50V
Features
Description
•
ESD protected to 2KV
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
This new generation MOSFET has been designed to minimize the
on-state resistance (RDS(ON)) and yet maintain superior switching
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
performance, making it ideal for high efficiency power management
Mechanical Data
applications.
•
Applications
•
•
DC-DC Converters
•
Power management functions
•
•
Battery Operated Systems and Solid-State Relays
•
•
Drivers: Relays, Solenoids, Lamps, Hammers, Displays,

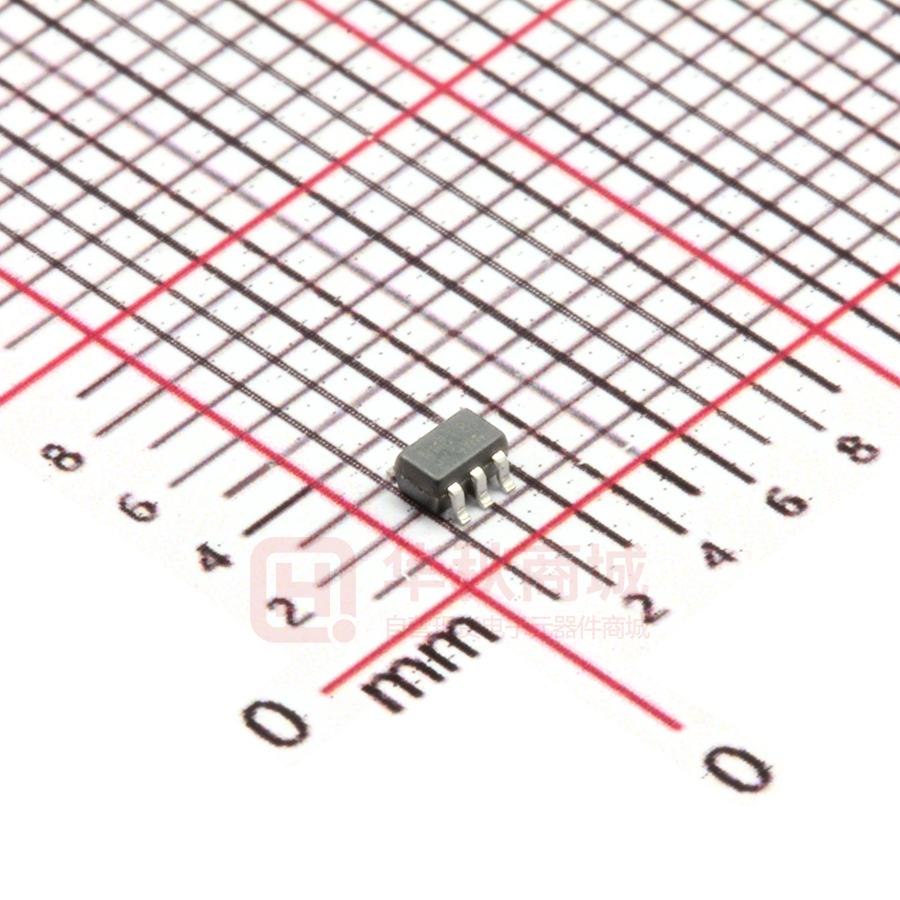

Case: SOT363
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Memories, Transistors, etc
•
Terminal Connections: See Diagram
•
Weight: 0.006 grams (approximate)
SOT363
ESD PROTECTED
D2
G1
S1
S2
G2
D1
Top View
Internal Schematic
Top View
Ordering Information (Note 4)
Part Number
DMN53D0LDW-7
DMN53D0LDW-13
Notes:
Case
SOT363
SOT363
Packaging
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
