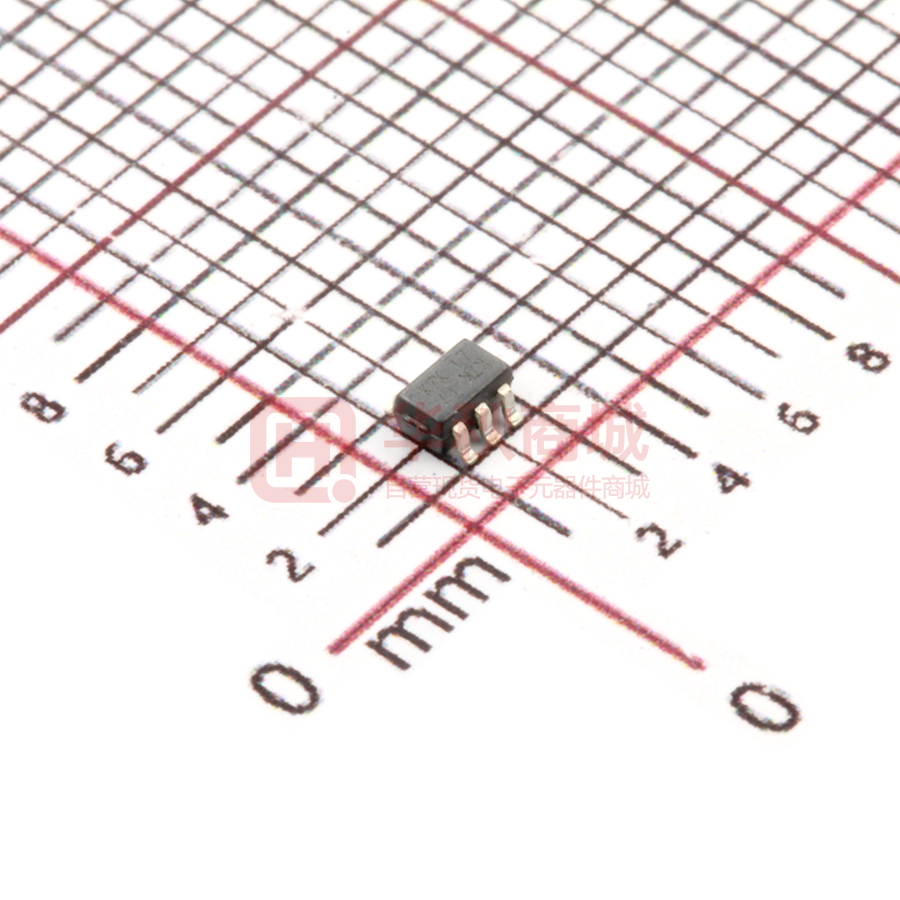

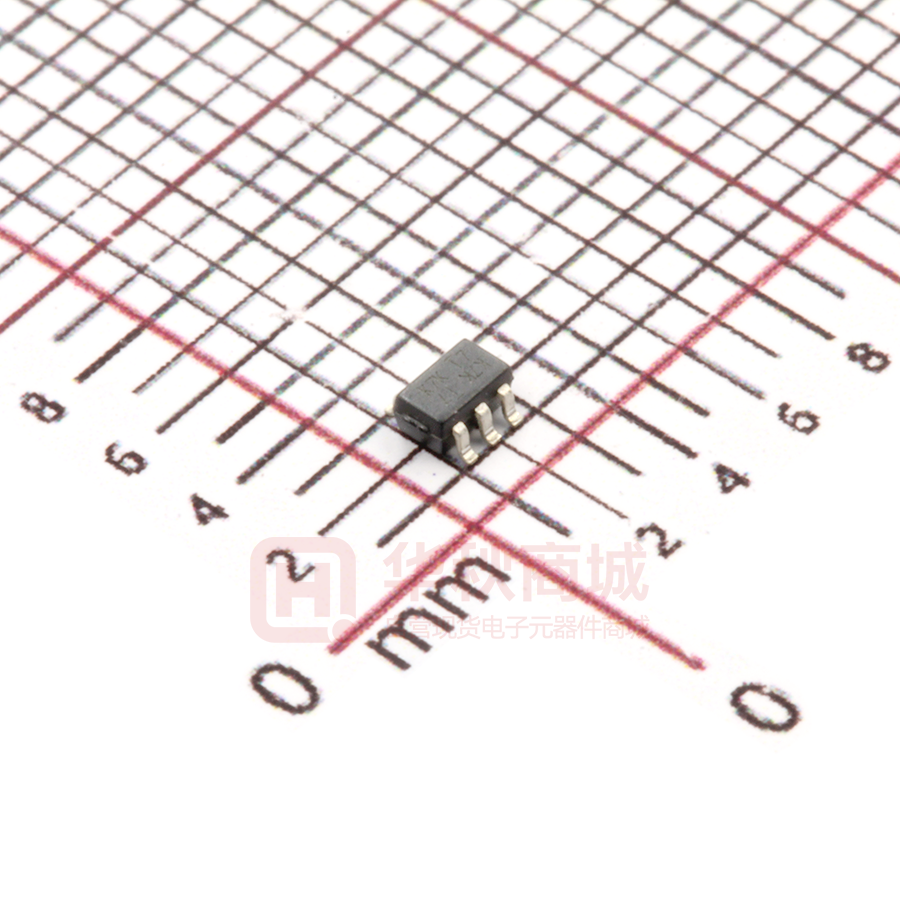

DMN601DWK-7

DMN601DWK DUAL N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Product Summary Features and Benefits BVDSS RDS(on) Max ID Max TA = +25°C 60V 3Ω @ VGS = 5V 0.3A • • • • • • • • • • • • • Dual N-Channel MOSFET Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package ESD Protected Up To 2kV Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DMN601DWKQ) Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(on)), yet maintain superior switching performance, making it ideal • • for high-efficiency power management applications. • • • • Motor Control Power Management Functions • • Case: SOT363 (Standard) Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead-Free Plating). Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Weight: 0.006 grams (Approximate) D1 SOT363 (Standard) G1 ESD Protected up to 2kV D2 G1 S1 S2 S2 G2 D1 G2 Gate Protection Diode Top View D2 S1 Gate Protection Diode Equivalent Circuit Top View Internal Schematic Ordering Information (Note 4) Part Number DMN601DWK-7 Notes: Case SOT363 (Standard) Packaging 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
