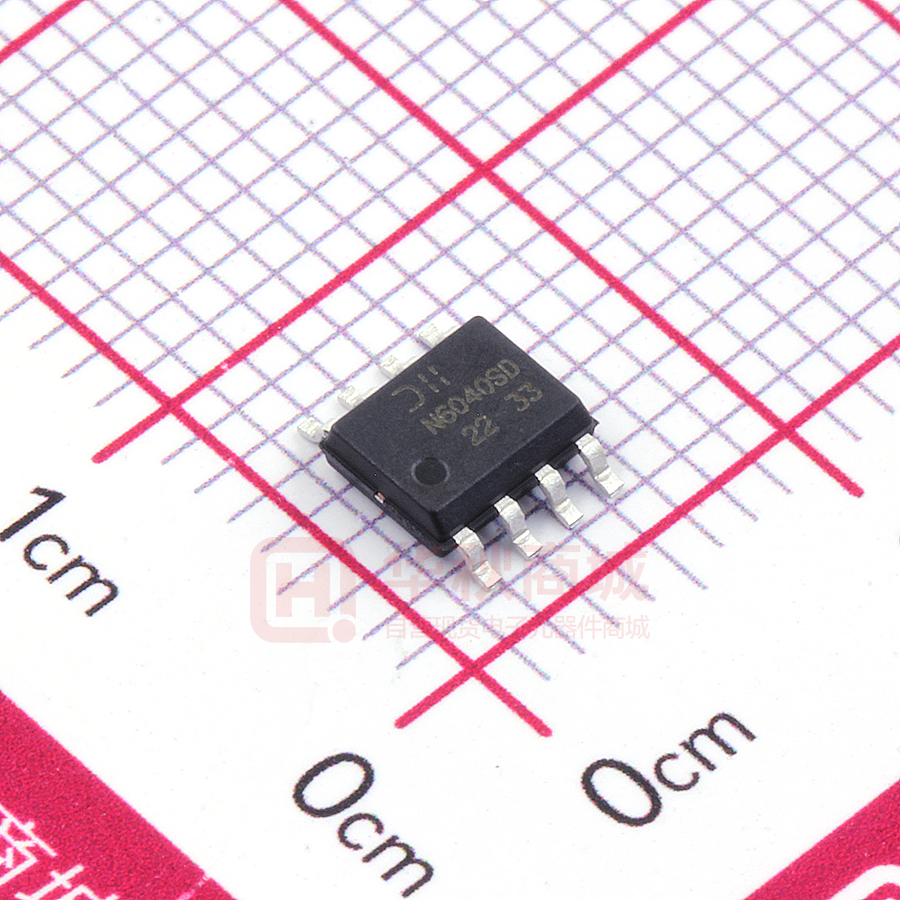

DMN6040SSD-13

DMN6040SSD DUAL N-CHANNEL ENHANCEMENT MODE MOSFET ADVANCE INFORMATION Product Summary V(BR)DSS Features and Benefits ID RDS(ON) Max TA = +25°C 40mΩ @ VGS = 10V 5.0A 55mΩ @ VGS = 4.5V 4.4A 60V        Low Input Capacitance Low On-Resistance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Data Sheet (DMN6040SSDQ) Description and Applications Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance,   Case: SO-8 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Terminals: Finish – Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.074 grams (Approximate) making it ideal for high efficiency power management applications.       DC-DC Converters Power Management Functions Backlighting  S1 D1 G1 D1 S2 D2 G2 D2 Top View Top View Pin Configuration D1 G1 D2 G2 S1 S2 Equivalent Circuit Ordering Information (Note 4) Part Number DMN6040SSD-13 Notes: Case SO-8 Packaging 2,500/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
