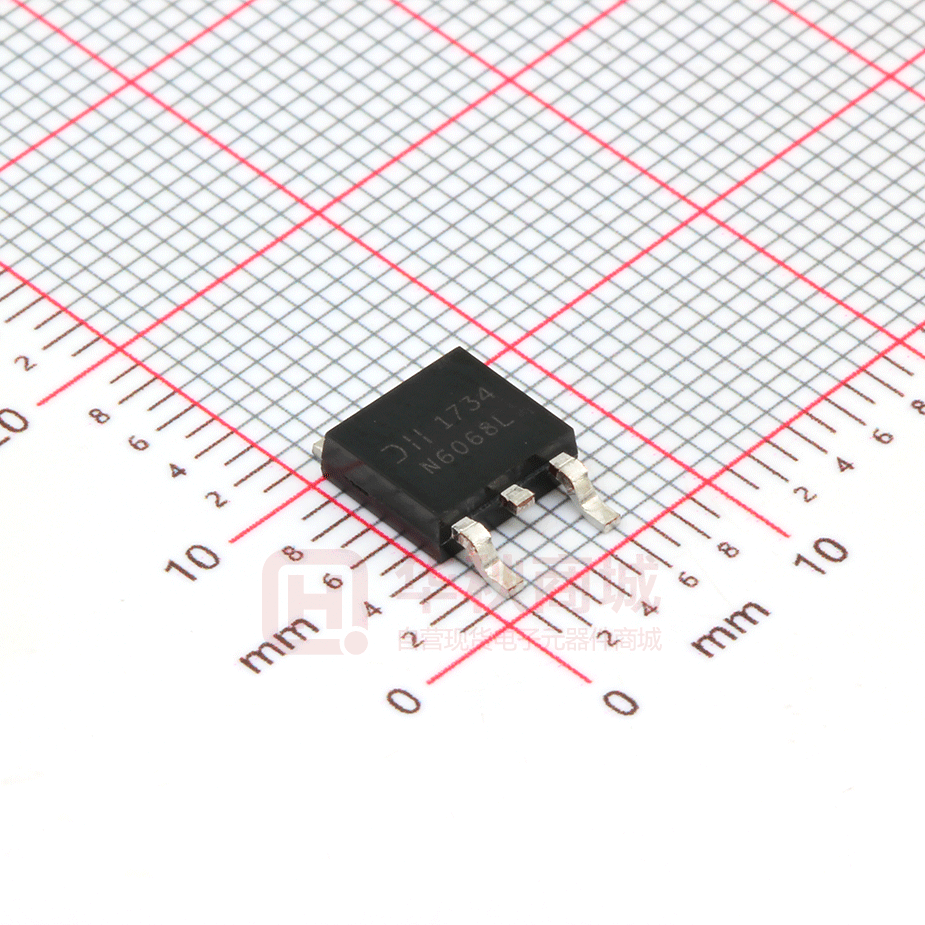

DMN6068LK3-13

DMN6068LK3 Green Product Summary V(BR)DSS 60V N-CHANNEL ENHANCEMENT MODE MOSFET Features and Benefits ID RDS(on) TA = +25°C 68mΩ @ VGS = 10V 8.5A 100mΩ @ VGS = 4.5V 7.0A • 100% Unclamped Inductive Switch (UIS) test in production • Low on-resistance • Fast switching speed • • • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability 60V Mechanical Data • Case: TO252 Description • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 (Note 1) This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals Connections: See Diagram • Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.33 grams (approximate) Applications • Motor Control • Transformer Driving Switch • DC-DC Converters • Power Management Functions • Uninterrupted Power Supply D D TO252-3L G D G TOP VIEW Ordering Information Note: S PIN OUT -TOP VIEW S Equivalent Circuit (Note 4) Product Marking Reel size (inches) Tape width (mm) Quantity per reel DMN6068LK3-13 N6068L 13 16 2,500 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
