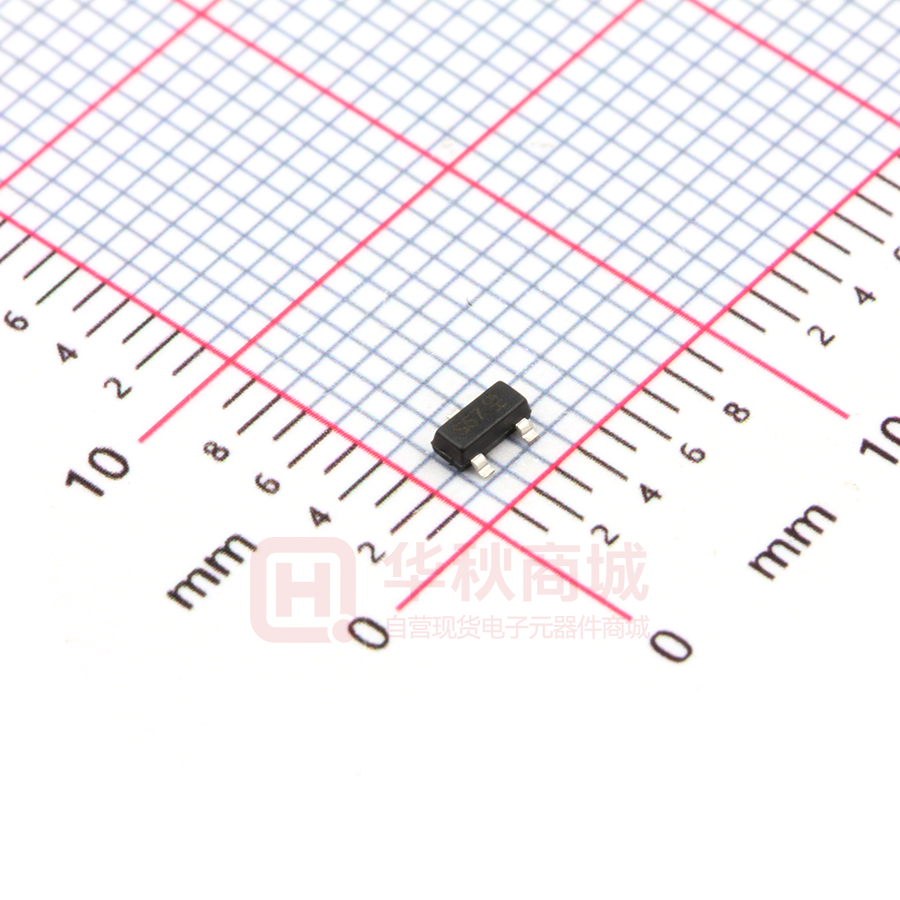

DMN6075S-7

DMN6075S 60V N-CHANNEL ENHANCEMENT MODE MOSFET Summary Features and Benefits Description        This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, Mechanical Data RDS(ON) Max ID Max TA = +25°C 85mΩ @ VGS = 10V 2.5A 120mΩ @ VGS = 4.5V 2.0A BVDSS making it ideal for high efficiency power management applications.   Applications       DC-DC Converters Power Management Functions Backlighting  Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Below Terminals: Finish - Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.008 grams (Approximate) D SOT23 D G S G S Top View Top View Pin Configuration Top View Ordering Information (Note 4) Notes: Product Reel Size (inches) Tape Width (mm) Quantity per Reel DMN6075S-7 DMN6075S-13 7 13 8 8 3,000 10,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
