DMN62D0SFD
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON)
ID
TA = +25°C
2Ω @ VGS = 10V
540mA
3Ω @ VGS = 5V
430mA
BVDSS
NEW PRODUCT
Features and Benefits
60V
Description and Applications
This new generation MOSFET has been designed to minimize the
on-state resistance (RDS(ON)) yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
DC-DC Converters
Power Management Functions
Battery Operated Systems and Solid-State Relays
Load Switch
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
ESD Protected Gate to 2kV
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e.: parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified
facilities), please refer to the related automotive grade (Qsuffix) part. A listing can be found at
https://www.diodes.com/products/automotive/automotiveproducts/.
This part is qualified to JEDEC standards (as references in
AEC-Q) for High Reliability.
https://www.diodes.com/quality/product-definitions/
Mechanical Data

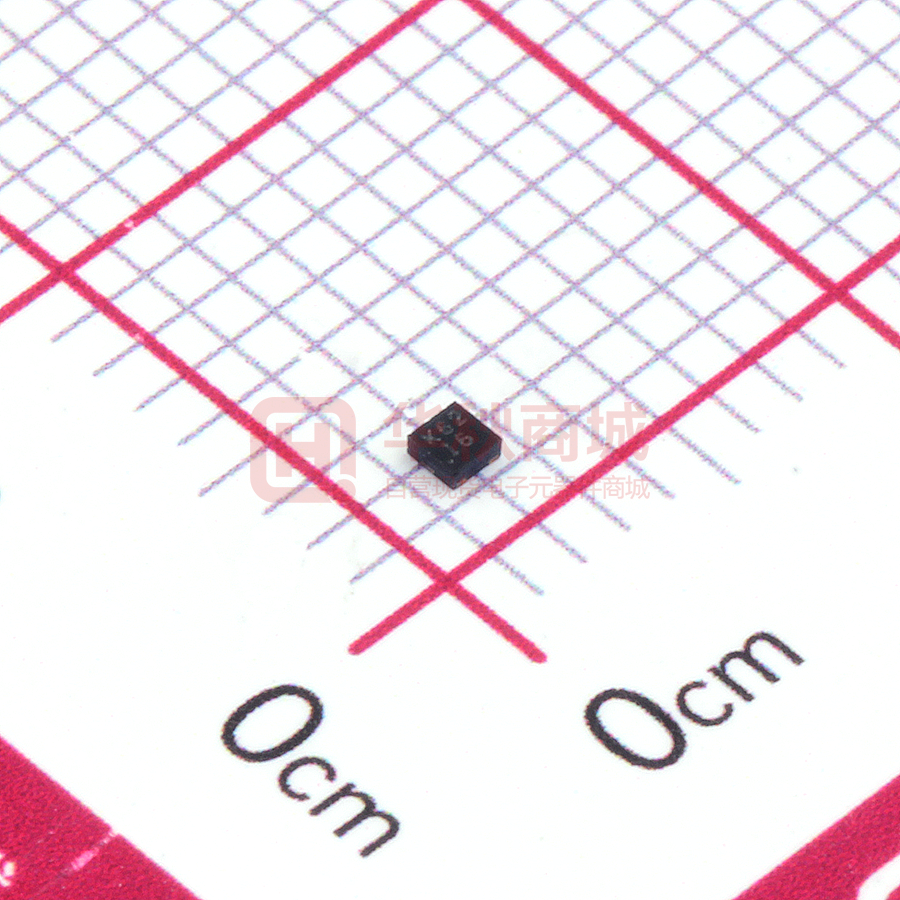

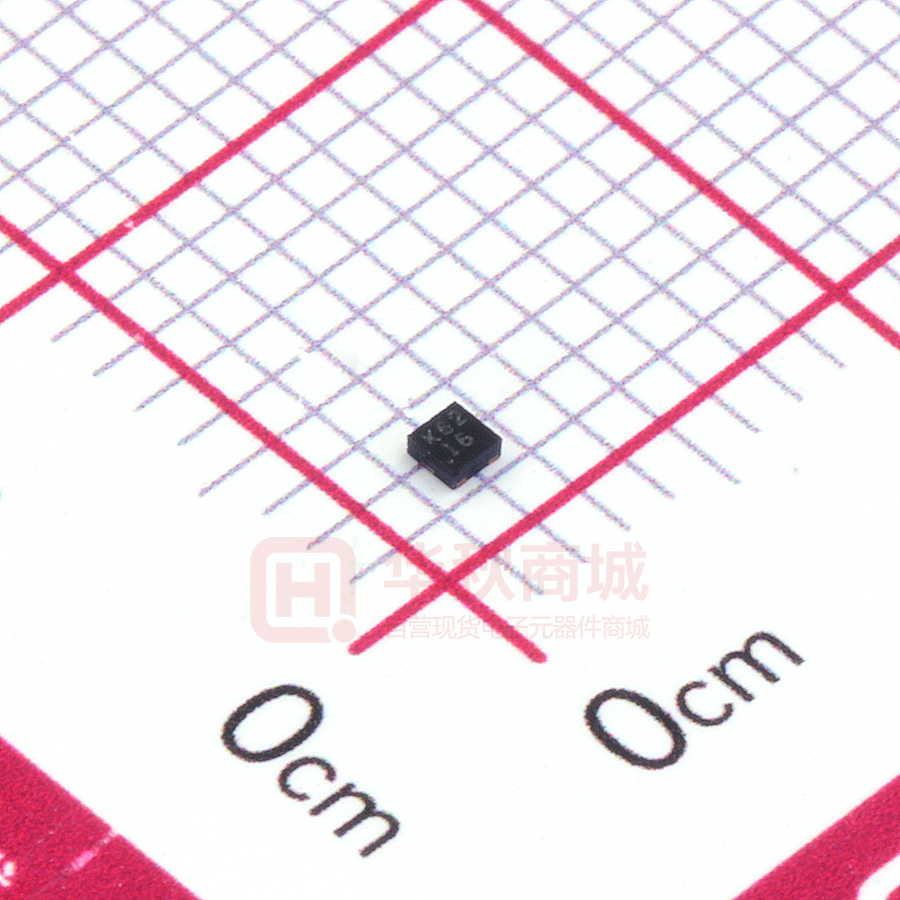

Case: X1-DFN1212-3
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.005 grams (Approximate)
Drain
Body
Diode
Gate
D
Gate
Protection
Diode
ESD PROTECTED TO 2kV
Top View
Bottom View
S
G
Source
Equivalent Circuit
Top View
Pin-Out
Ordering Information (Note 4)
Part Number
DMN62D0SFD-7
Notes:
Case
X1-DFN1212-3
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
