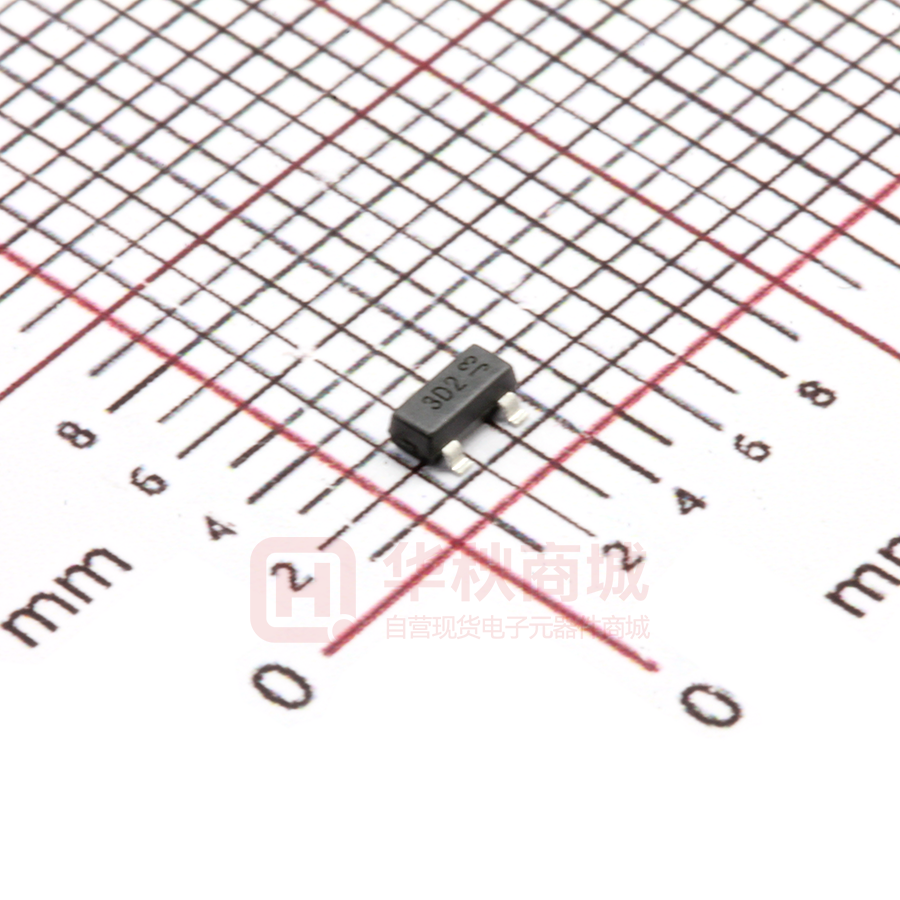

DMN62D0U-13

DMN62D0U N-CHANNEL ENHANCEMENT MODE MOSFET NEW PRODUCT Product Summary Features and Benefits BVDSS RDS(ON) max 60V 2Ω @ VGS = 4.5V 2.5Ω @ VGS = 2.5V ID max TA = +25°C 380mA 340mA Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Low On-Resistance  Low Input Capacitance  Fast Switching Speed  Low Input/Output Leakage  ESD Protected Up To 1kV  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data Applications     Motor Control Power Management Functions Backlighting  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208 e3  Weight: 0.008 grams (Approximate) D SOT23 D G Gate Protection Diode ESD protected up to 1kV Top View S G S Top View Equivalent Circuit Ordering Information (Note 4) Part Number DMN62D0U-7 DMN62D0U-13 Notes: Case SOT23 SOT23 Packaging 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
