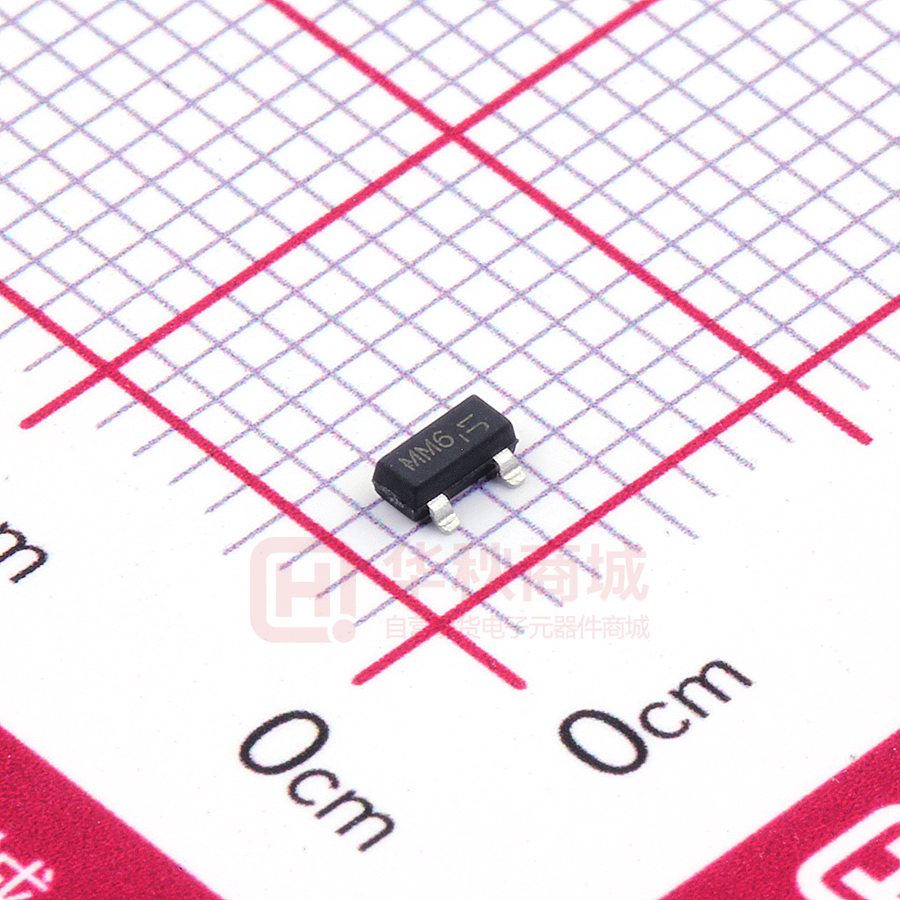

DMN65D8L-7

DMN65D8L N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary RDS(ON) ID TA = +25°C 3Ω @ VGS = 10V 310mA 4Ω @ VGS = 5V 270mA BVDSS 60V Features and Benefits Description and Applications This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.               DC-DC Converters Power Management Functions Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc. Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Small Surface Mount Package ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DMN65D8LQ) Mechanical Data       Case: SOT23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe). e3 Terminal Connections: See Diagram Weight: 0.008487 grams (Approximate) D SOT23 (Standard) D G S G ESD PROTECTED TO 1kV Gate Protection Diode Top View Pin Configuration Top View S Equivalent Circuit Ordering Information (Note 4) Part Number DMN65D8L-7 Notes: Case SOT23 (Standard) Packaging 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
