DMN65D8LW
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS
60V
Features and Benefits
RDS(on) Max
ID
TA = +25°C
3Ω @ VGS = 10V
300mA
4Ω @ VGS = 5V
260mA
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Small Surface Mount Package
ESD Protected Gate, 1KV (HBM)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e.: parts qualified to AEC-Q101, PPAP capable, and
manufactured in IATF 16949 certified facilities), please refer
to the related automotive grade (Q-suffix) part. A listing can
be found at
https://www.diodes.com/products/automotive/automotiveproducts/.
This part is qualified to JEDEC standards (as references in
AEC-Q101) for High Reliability.
https://www.diodes.com/quality/product-definitions/
•
•
•
•
•
•
•
•
•
•
Description and Applications
Mechanical Data
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching
•
•
performance, making it ideal for high efficiency power management
applications.
•
•
•
•
DC-DC Converters
Power Management Functions
Battery Operated Systems and Solid-State Relays
Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc

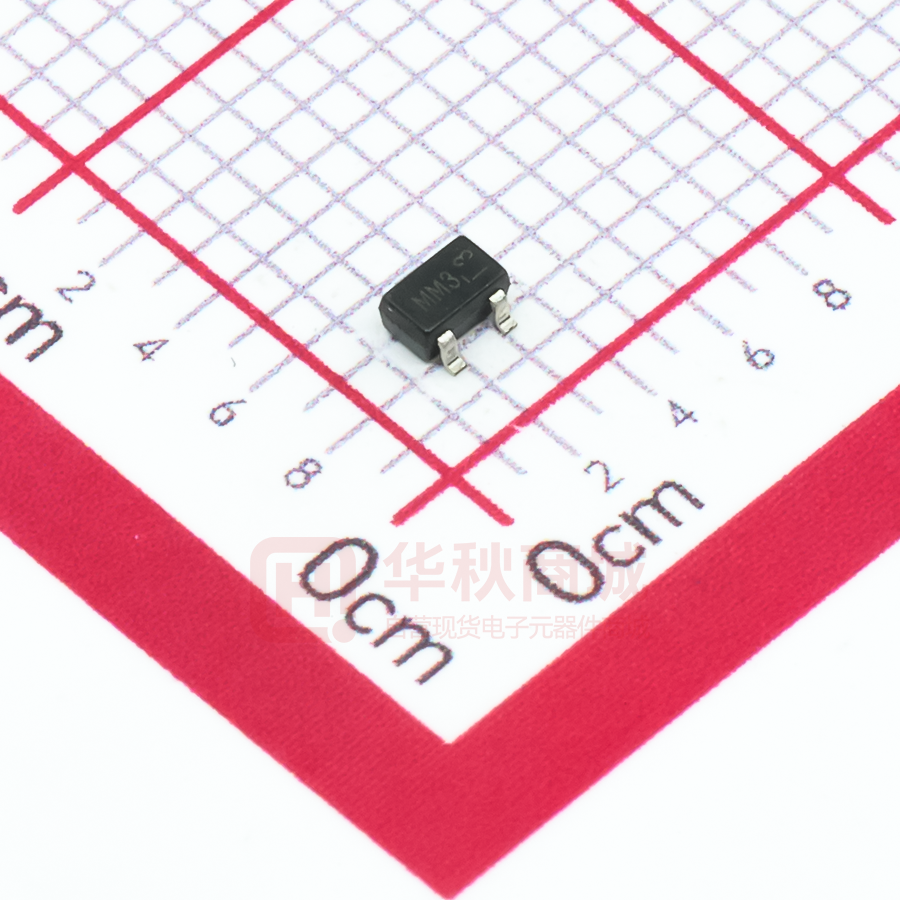

Case: SOT323 (Standard)
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3
Terminal Connections: See Diagram
Weight: 0.006 grams (approximate)
•
•
•
•
D
SOT323 (Standard)
D
G
G
ESD PROTECTED TO 1kV
Top View
S
Top View
Pin Configuration
S
Gate Protection
Diode
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMN65D8LW-7
Notes:
Case
SOT323 (Standard)
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
