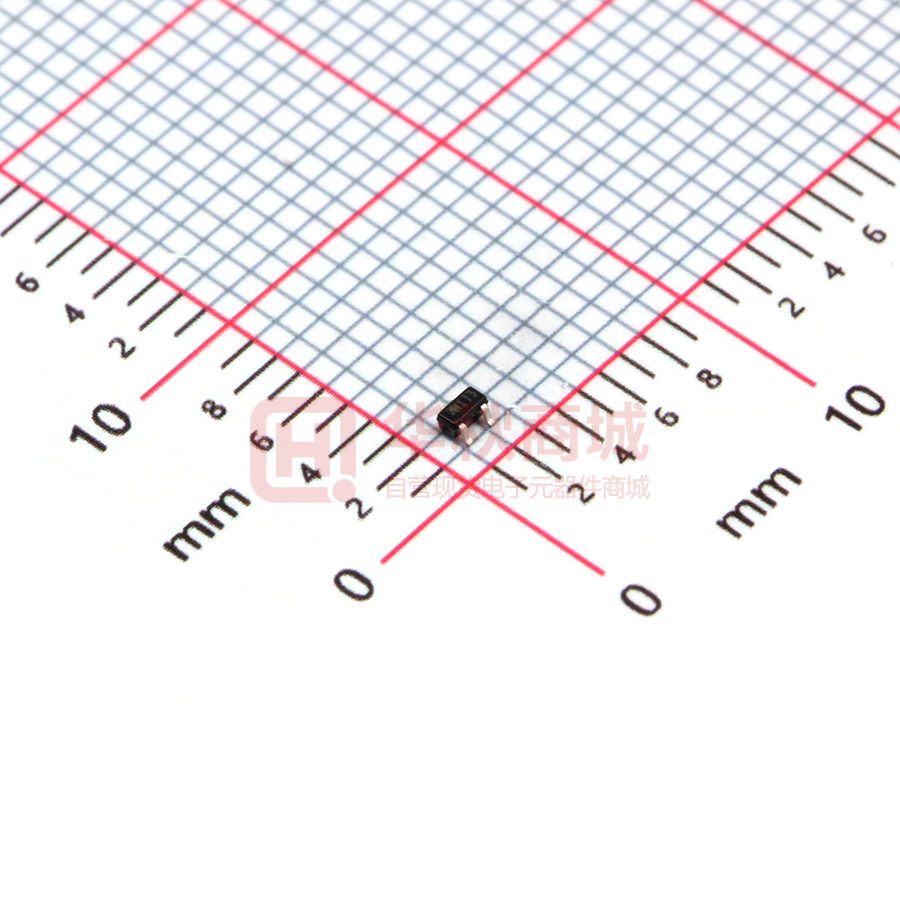

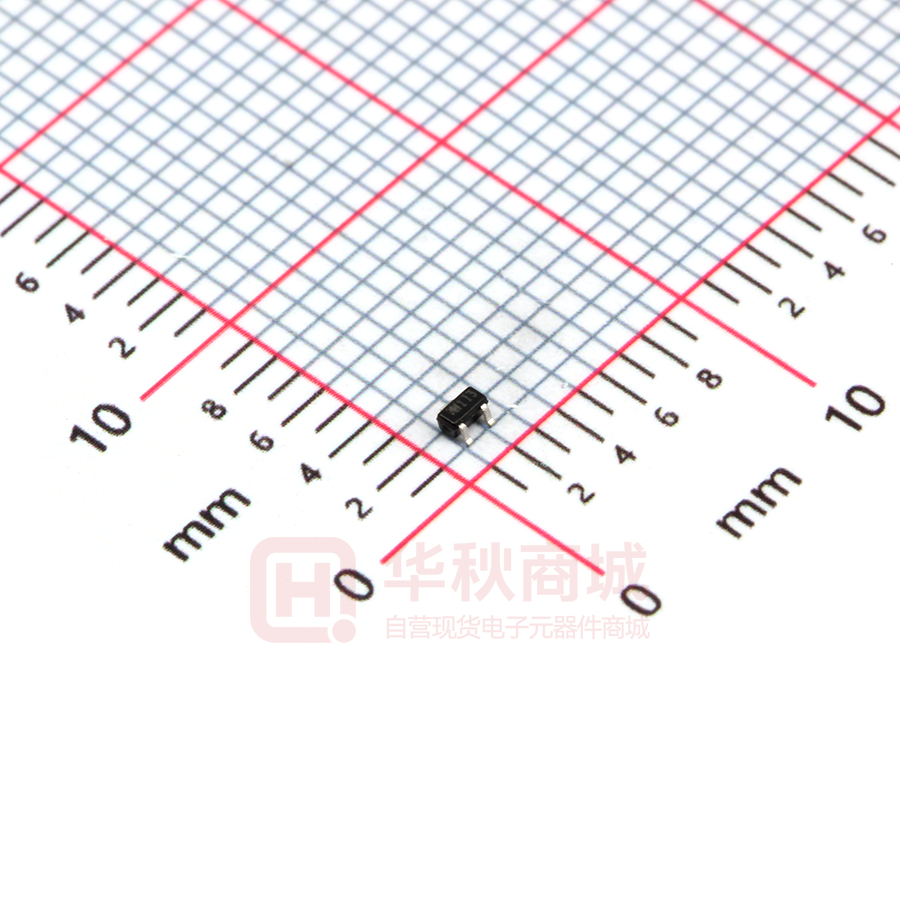

DMN66D0LT-7

DMN66D0LT N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features V(BR)DSS RDS(on) max ID max TA = +25°C 60V 5Ω @ VGS = 10V 115mA • • • • • • • • • Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Small Surface Mount Package ESD Protected Gate, 1KV (HBM) Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it • • ideal for high-efficiency power management applications. • • • • • • • Load switches Power management functions Motor controls PWM applications • Case: SOT523 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Weight: 0.002 grams (approximate) D SOT523 D G G ESD PROTECTED, 1KV Gate Protection Diode S Equivalent Circuit Top View S Top View Pin Out Ordering Information (Note 4) Part Number DMN66D0LT-7 Notes: Case SOT523 Packaging 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
