DMN7022LFG
75V N-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI®
Features and Benefits
V(BR)DSS
RDS(ON) max
75V
22mΩ @ VGS = 10V
28mΩ @ VGS = 4.5V
ID max
TA = +25°C
7.8A
6.9A
•
Low RDS(ON) – ensures on state losses are minimized
•
Small form factor thermally efficient package enables higher
density end products
•
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
ideal for high efficiency power management applications.
Mechanical Data
•
Backlighting
•
•
Power Management Functions
•
•
DC-DC Converters
®

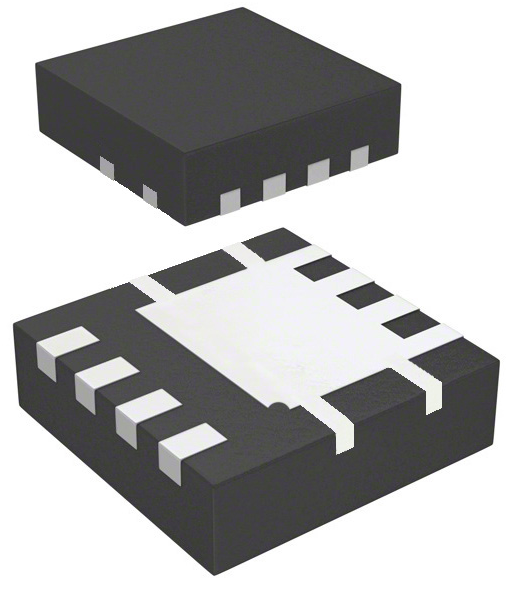

Case: POWERDI 3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections Indicator: See diagram
•
Terminals: Finish ⎯ Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.072 grams (approximate)
D
®
POWERDI 3333-8
S
Pin 1
S
S
G
G
D
D
D
D
Bottom View
Top View
S
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMN7022LFG-7
DMN7022LFG-13
Notes:
Case
®
POWERDI 3333-8
®
POWERDI 3333-8
Packaging
2,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
