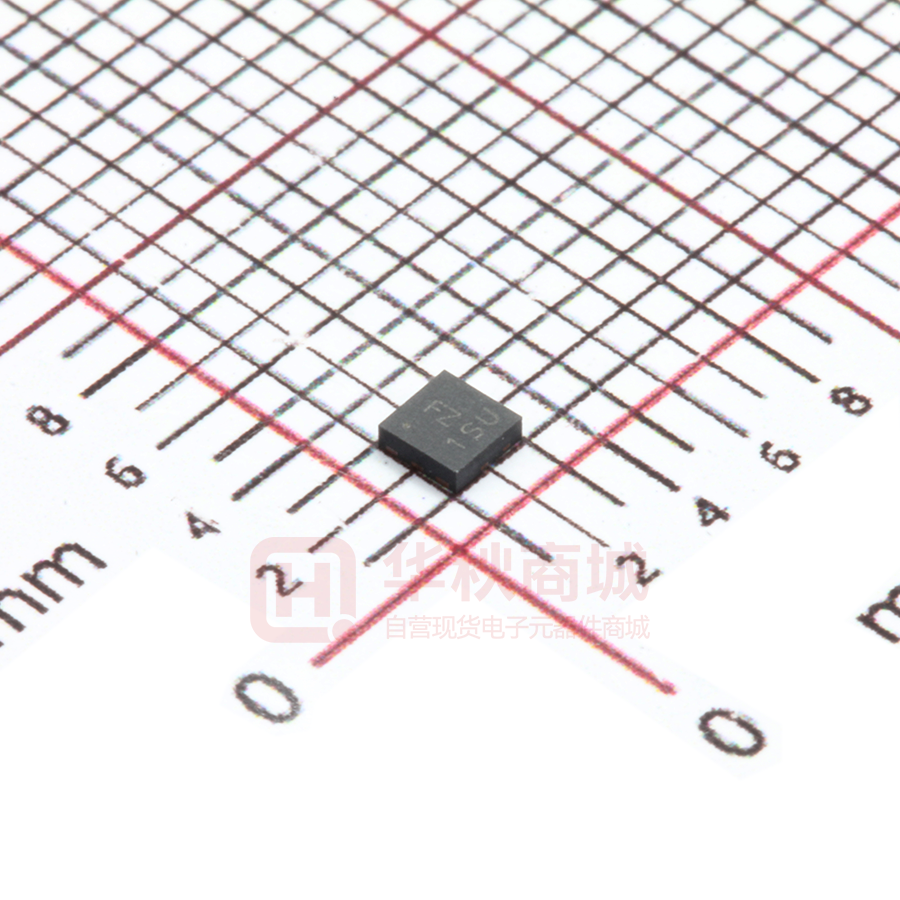

DMP1009UFDF-7

DMP1009UFDF 12V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary RDS(ON) max ID max TA = +25°C 11m @ VGS = -4.5V -11A 14mΩ @ VGS = -3.7V -9.7A 19mΩ @ VGS = -2.5V -8.3A 30mΩ @ VGS = -1.8V -6.6A BVDSS -12V Features        Description This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance,  making it ideal for high efficiency power management applications. 0.6mm Profile – Ideal for Low Profile Applications PCB Footprint of 4mm2 Low On-Resistance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DMP1009UFDFQ) Applications Mechanical Data  Battery Management Application  Power Management Functions    DC-DC Converters    Case: U-DFN2020-6 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.007 grams (Approximate) D U-DFN2020-6 (Type F) G Pin1 Top View Bottom View Pin Out Bottom View S Internal Schematic Ordering Information (Note 4) Part Number DMP1009UFDF-7 DMP1009UFDF-13 Notes: Case U-DFN2020-6 (Type F) U-DFN2020-6 (Type F) Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
