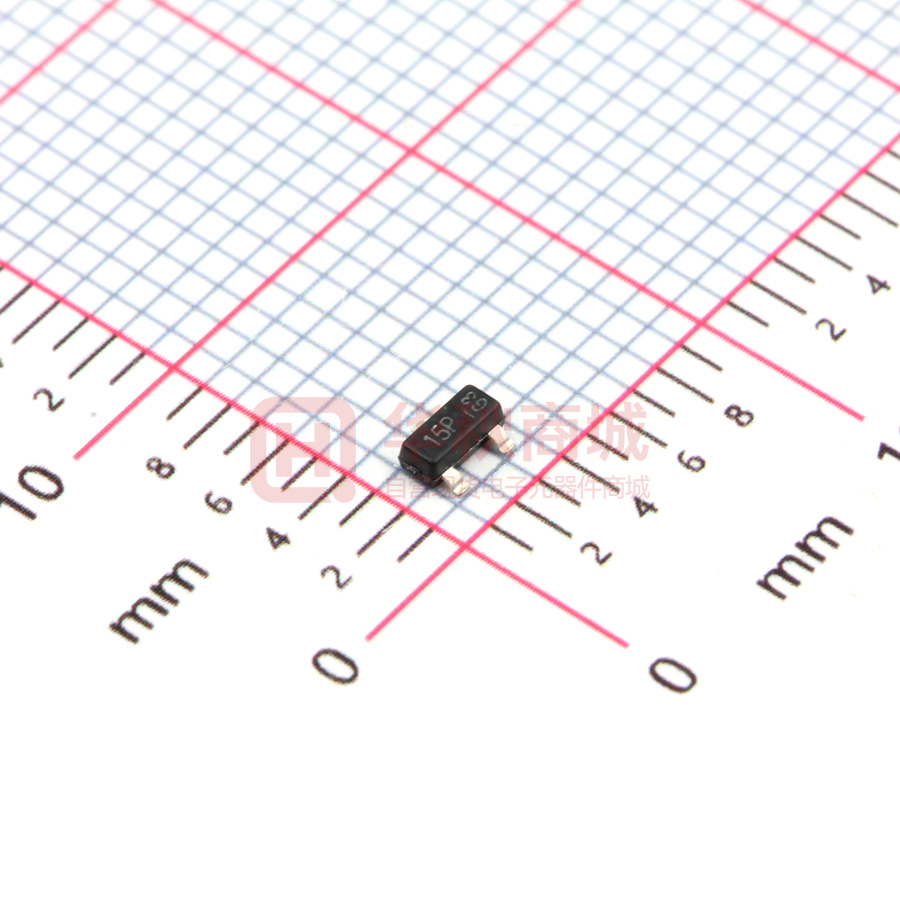

DMP1045U
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) Max
ID
TA = +25°C
31mΩ @ VGS = -4.5V
5.2A
45mΩ @ VGS =-2.5V
4.3A
BVDSS
-12V
Features and Benefits
Description
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(ON)) while maintaining superior switching
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Data Sheet (DMP1045UQ)
performance, which makes the device ideal for high-efficiency powermanagement applications.
Applications
Mechanical Data
DC-DC Converters
Power Management Functions
Analog Switch
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish—Matte Tin Annealed Over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.009 grams (Approximate)
D
SOT23
D
G
ESD protected Gate
G
S
Gate Protection
Diode
Top View
Pin Configuration
S
Internal Schematic
Ordering Information (Note 4)
Part Number
DMP1045U-7
Notes:
Case
SOT23
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3).compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
