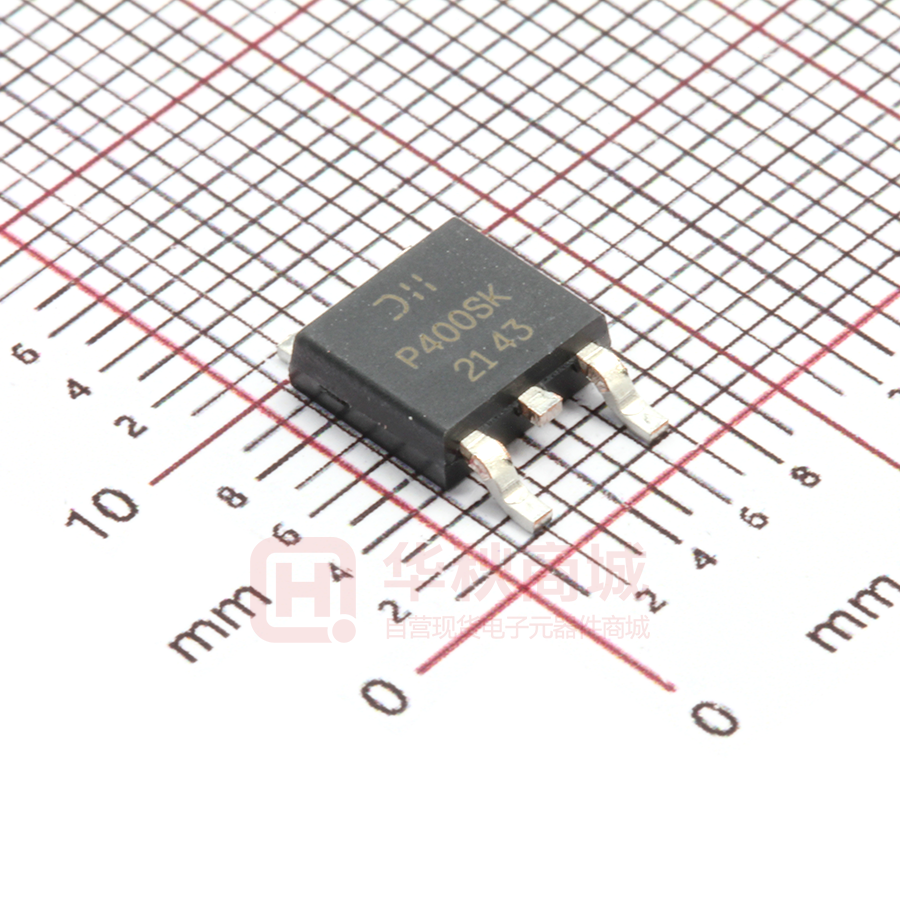

DMP10H400SK3-13

DMP10H400SK3 100V P-CHANNEL ENHANCEMENT MODE MOSFET NEW PRODUCT Product Summary Features V(BR)DSS RDS(on) max -100V 240mΩ @ VGS = -10V 300mΩ @ VGS = -4.5V ID TC = +25°C -9A -8A  Low On-Resistance  Low Input Capacitance  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Description Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance,  Case: TO252 (DPAK) making it ideal for high efficiency power management applications.  Case Material: Molded Plastic, “Green” Molding Compound. Applications  Moisture Sensitivity: Level 1 per J-STD-020  DC-DC Converters  Terminal Connections: See Diagram  Power Management Functions   Analog Switch Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208  Weight: 0.33 grams (Approximate) UL Flammability Classification Rating 94V-0 D TO252 D G Top View S Top View Pin Out Internal Schematic Ordering Information (Note 4) Part Number DMP10H400SK3-13 Notes: Compliance Standard Case TO252 Packaging 2,500/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
