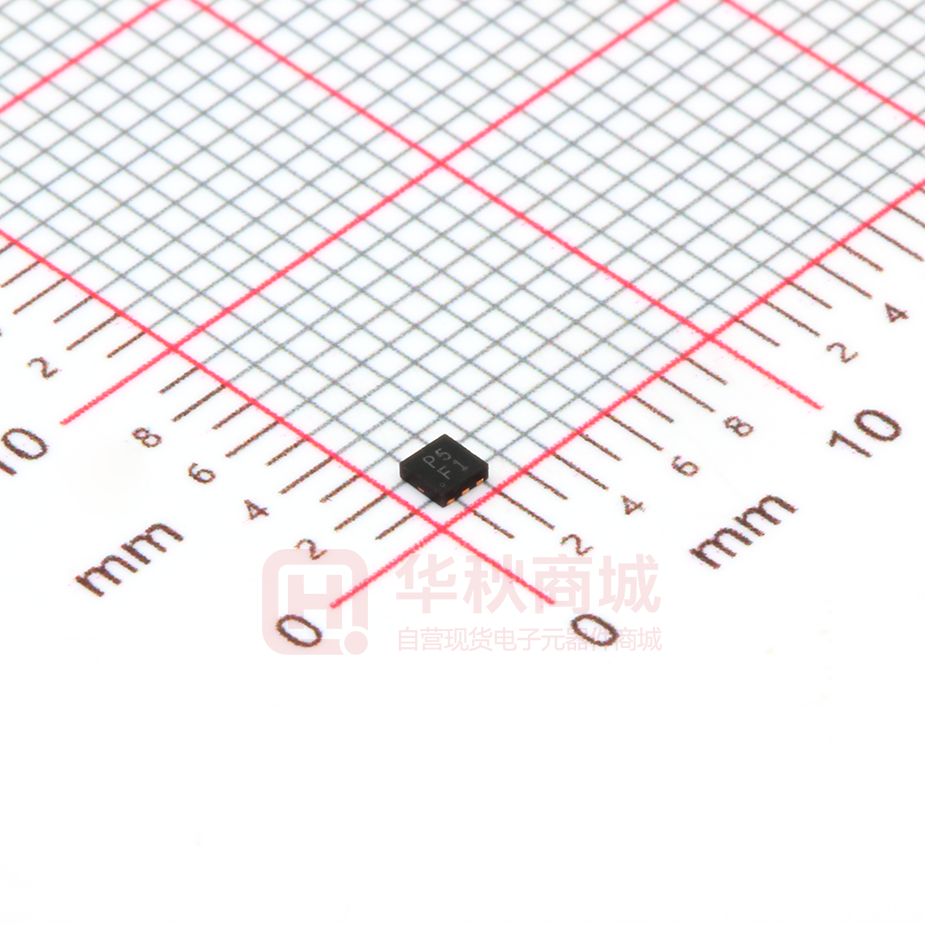

DMP1245UFCL-7

DMP1245UFCL 12V P-CHANNEL ENHANCEMENT MODE MOSFET Summary Features and Benefits RDS(on) max ID max  29mΩ @VGS = -4.5V -6.6 A  45mΩ @VGS = -2.5V -5.3 A 60mΩ @VGS = -1.8V -4.6 A   100mΩ @VGS = -1.5V -3.5 A ADVANCE INFORMATION V(BR)DSS -12V    Typical off board profile of 0.5mm ideally suited for thin applications Low RDS(ON) minimizes conduction losses PCB footprint of 2.56mm2 3kV ESD Protected Gate – protection against human borne ESD Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Applications Mechanical Data This device provides high performance, low RDS(ON) P Channel   MOSFETs in the thermally and space efficient X1-DFN1616-6 package. The low RDS(ON) of this MOSFET ensures conduction     losses are kept making it ideal for use as a:   Battery Disconnect Switch Load Switch for Power Management Functions X1-DFN1616-6 Case: X1-DFN1616-6 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Lead Free Plating (NiPdAu Finish over Copper Leadframe) Terminals: Solderable per MIL-STD-202, Method 208 e4 Weight: 0.04 grams (Approximate) D Pin 1 G Gate Protection Diode Top View Bottom View S Top View Pin-Out Device symbol Ordering Information (Note 4) Product DMP1245UFCL-7 Notes: Marking P5 Reel size (inches) 7 Tape width (mm) 8 Quantity per reel 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
