DMP2004VK
DUAL P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS
Features
ID Max
TA = +25°C
RDS(ON) Max
0.9Ω @ VGS = -4.5V
-0.53A
1.4Ω @ VGS = -2.5V
-0.44A
-20V
Description
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Dual P-Channel MOSFET
Low On-Resistance
Very Low Gate Threshold Voltage VGS(TH) < 1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data

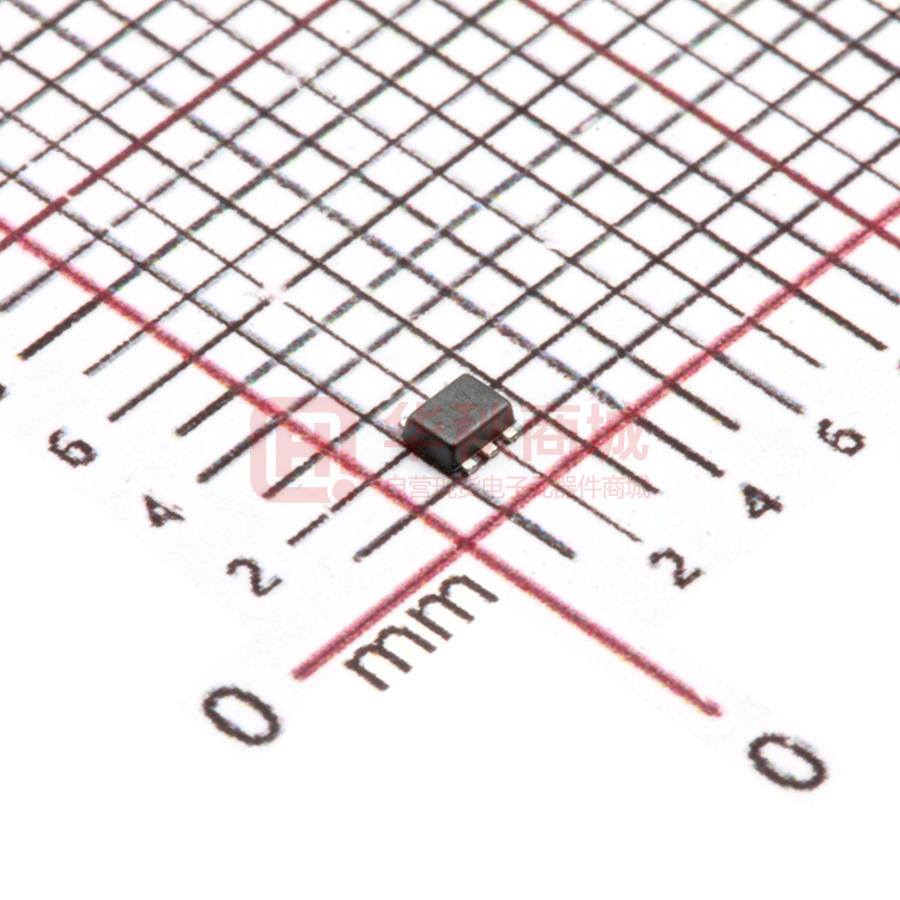

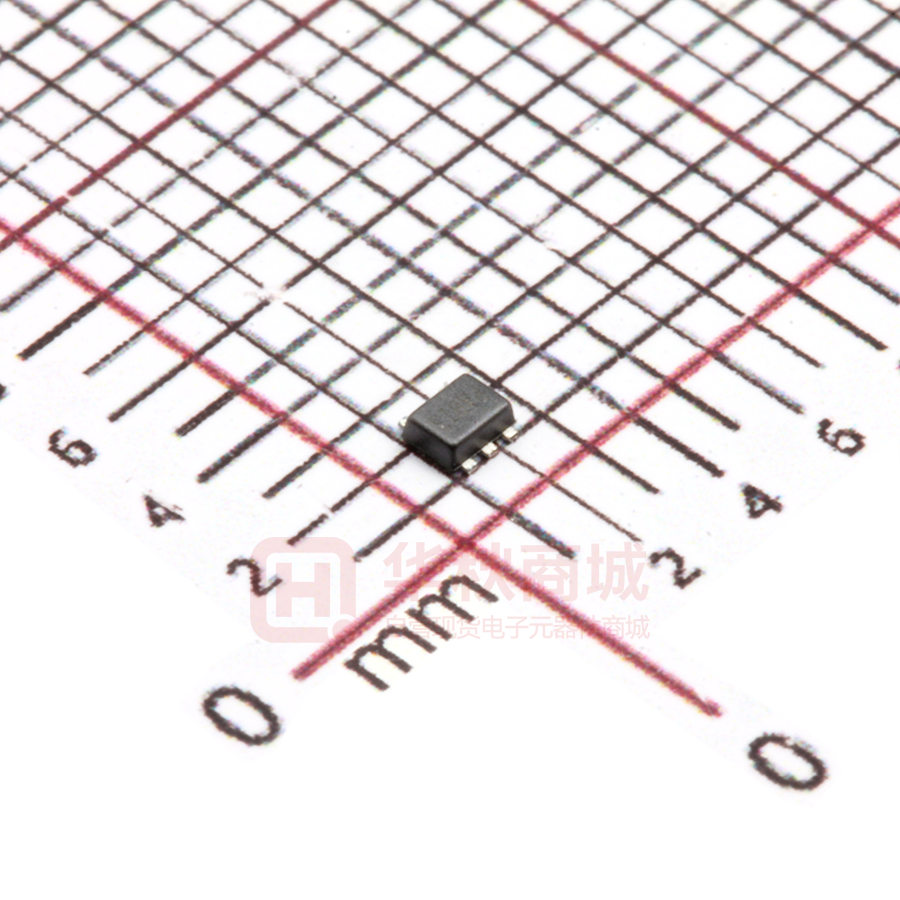

Case: SOT563
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Applications
Moisture Sensitivity: Level 1 per J-STD-020
Battery Charging
Terminal Connections: See Diagram
Power Management Functions
DC-DC Converters
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Portable Power Adaptors
Weight: 0.006 grams (Approximate)
SOT563
D1
Gate Protection
Diode
Top View
Gate Protection
Diode
S1
Q1 P-CHANNEL
MOSFET
Bottom View
D2
G1
S1
S2
S2
G2
D1
G2
G1
ESD PROTECTED
D2
Q2 P-CHANNEL
MOSFET
Top View
Pin Out
Ordering Information (Note 4)
Part Number
DMP2004VK-7
Notes:
Case
SOT563
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
