DMP2023UFDF
20V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) Max
ID Max
TA = +25°C
0.6mm Profile – Ideal for Low Profile Applications
PCB Footprint of 4mm2
27mΩ @ VGS = -4.5V
-7.6A
32mΩ @ VGS = -2.5V
-6.7A
50mΩ @ VGS = -1.8V
-5.2A
90mΩ @ VGS = -1.5V
-3.9A
Low Gate Threshold Voltage
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable,
and manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
BVDSS
-20V
Features
Description
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) yet maintain superior switching performance, making it ideal
for high-efficiency power management applications.
Mechanical Data
Battery management applications
Power management functions
DC-DC converters

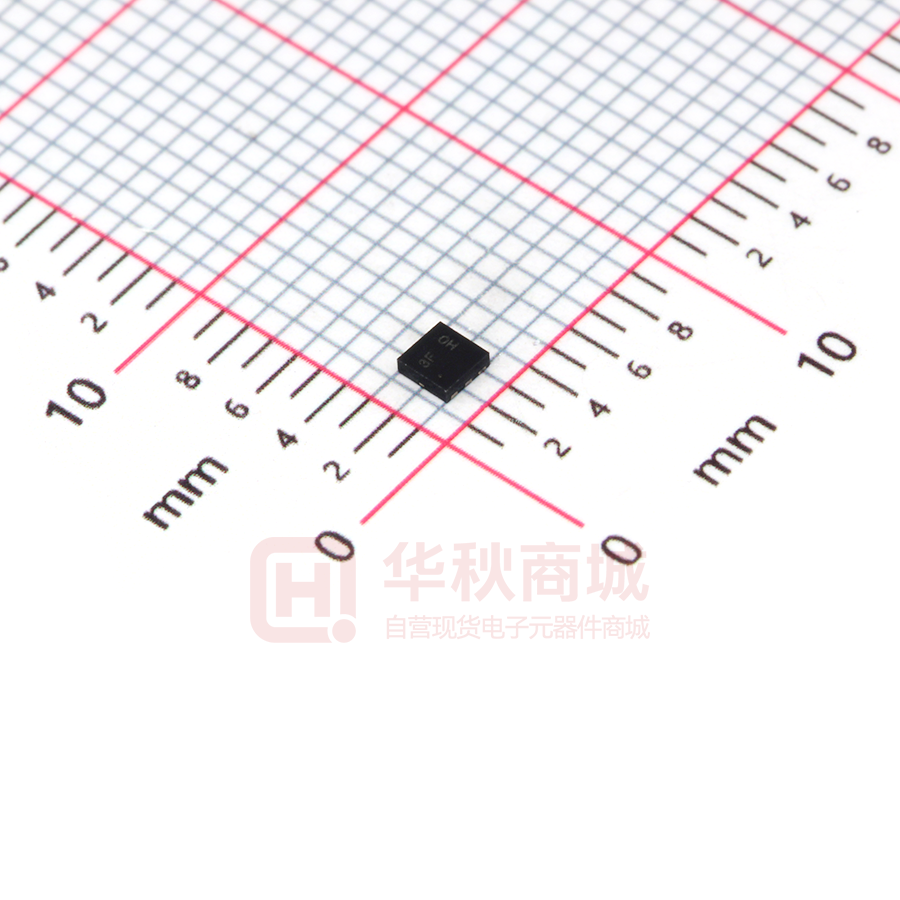

Package: U-DFN2020-6
Package Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.007 grams (Approximate)
U-DFN2020-6
(Type F)
D
G
S
Pin Out
Bottom View
Bottom View
Top View
Internal Schematic
Ordering Information (Note 4)
Part Number
Package
Marking
Reel Size (inches)
DMP2023UFDF-7
U-DFN2020-6 (Type F)
3F
DMP2023UFDF-13
U-DFN2020-6 (Type F)
3F
Notes:
Packing
Qty.
Carrier
7
3,000
Reel
13
10,000
Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
