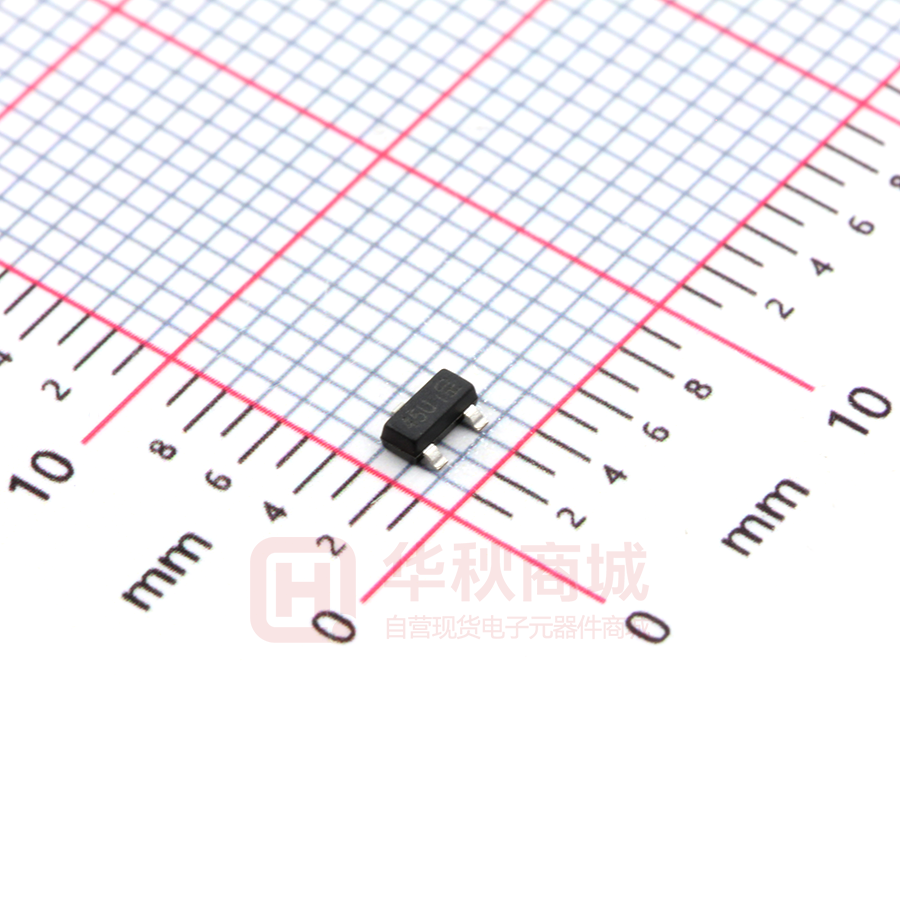

DMP2045U-7

DMP2045U P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features Description        This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, Mechanical Data BVDSS RDS(ON) max -20V 45mΩ @ VGS = -4.5V 58mΩ @ VGS = -2.5V 90mΩ @ VGS = -1.8V ID TA = +25°C -4.3A -3.8A -3.1A making it ideal for high efficiency power management applications.   Applications     DC-DC Converters Power Management Functions   Low On-Resistance Low Input Capacitance Fast Switching Speed Low Input/Output Leakage ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish ⎯ Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e3 Terminals Connections: See Diagram Below Weight: 0.009 grams (Approximate) D SOT23 D G S G ESD protected Gate Gate Protection Diode Top View Internal Schematic Top View S Equivalent Circuit Ordering Information (Note 4) Part Number DMP2045U-7 DMP2045U-13 Notes: Compliance Standard Standard Case SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
