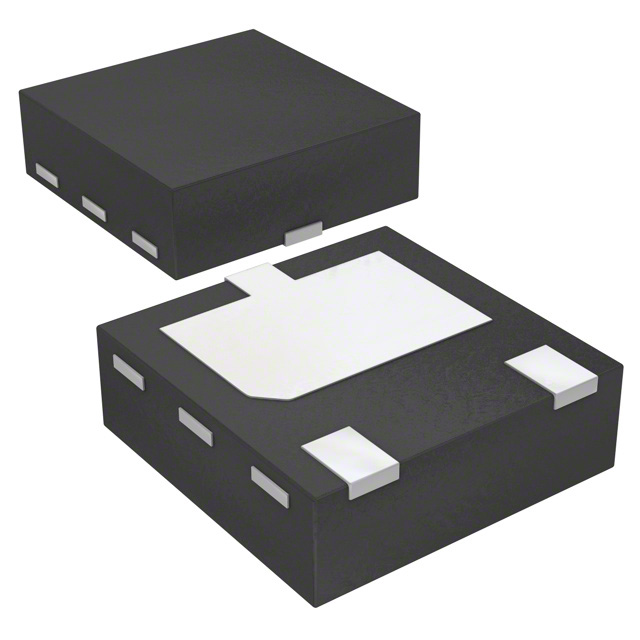

DMP2045UFY4-7

DMP2045UFY4 P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary NEW PRODUCT BVDSS Features and Benefits ID Max TA = +25°C RDS(ON) Max  Low On-Resistance  Low Input Capacitance Fast Switching Speed 45mΩ @ VGS = -4.5V -4.7A   Low Input/Output Leakage 90mΩ @ VGS = -1.8V -3.3A  ESD Protected  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) -20V Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.  Backlighting  Power Management Functions  DC-DC Converters Mechanical Data  Case: X2-DFN2015-3  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4  Terminals Connections: See Diagram Below  Weight: 0.008 grams (Approximate) S D D G G Gate Protection Diode ESD protected Gate TOP VIEW BOTTOM VIEW Internal Schematic (Top View) S Equivalent Circuit Ordering Information (Note 4) Part Number DMP2045UFY4-7 Notes: Case X2-DFN2015-3 Packaging 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
