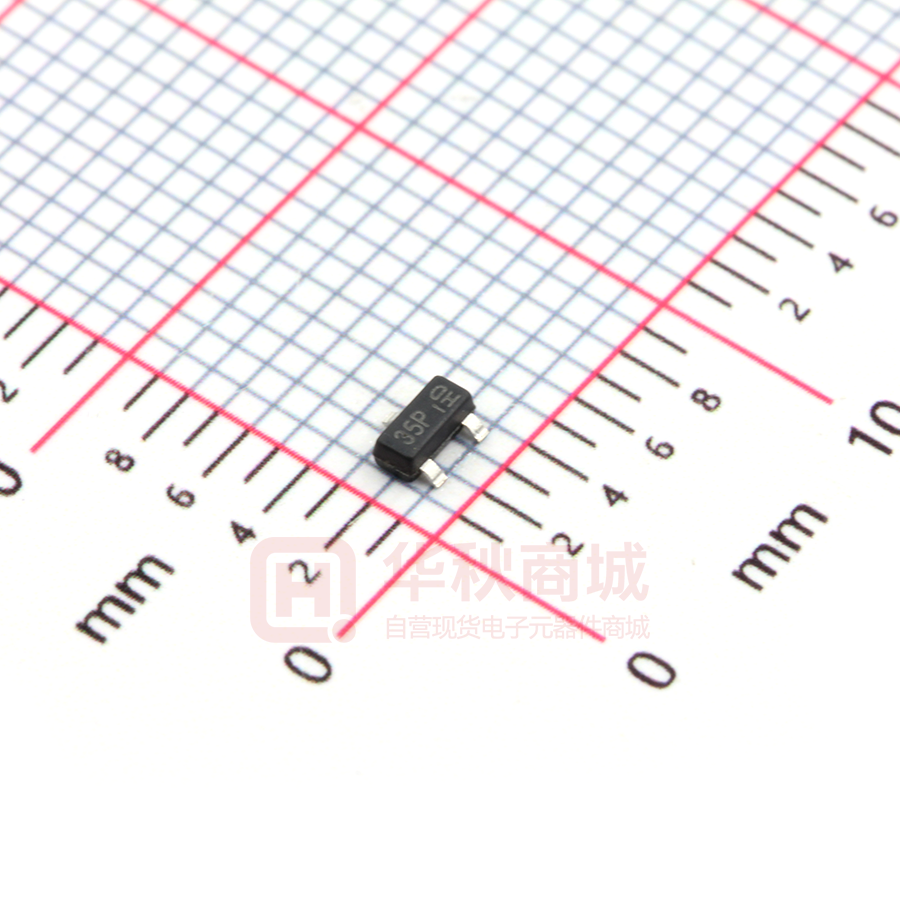

DMP2100U-7

DMP2100U P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features BVDSS RDS(ON) MAX -20V 43mΩ @ VGS = -4.5V Package 38mΩ @ VGS = -10V          ID TA = +25°C -4.3A SOT23 75mΩ @ VGS = -2.5V -4.0A -2.8A Description This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Mechanical Data   Applications   Low On-Resistance Low Input Capacitance Fast Switching Speed Low Input/Output Leakage ESD Protected Up To 3kV Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)   Load Switch Power Management Functions   Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish ⎯ Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Terminals Connections: See Diagram Below Weight: 0.008 grams (Approximate) D SOT23 D G S G ESD PROTECTED TO 3kV ESD Gate Protection Diode Top View Internal Schematic Top View S Equivalent Circuit (Note 5) Ordering Information (Notes 5 & 6) Part Number DMP2100U-7 DMP2100UQ-7 Notes: Compliance Standard Automotive Case SOT23 SOT23 Packaging 3,000/Tape & Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green" products are defined as those which contain
