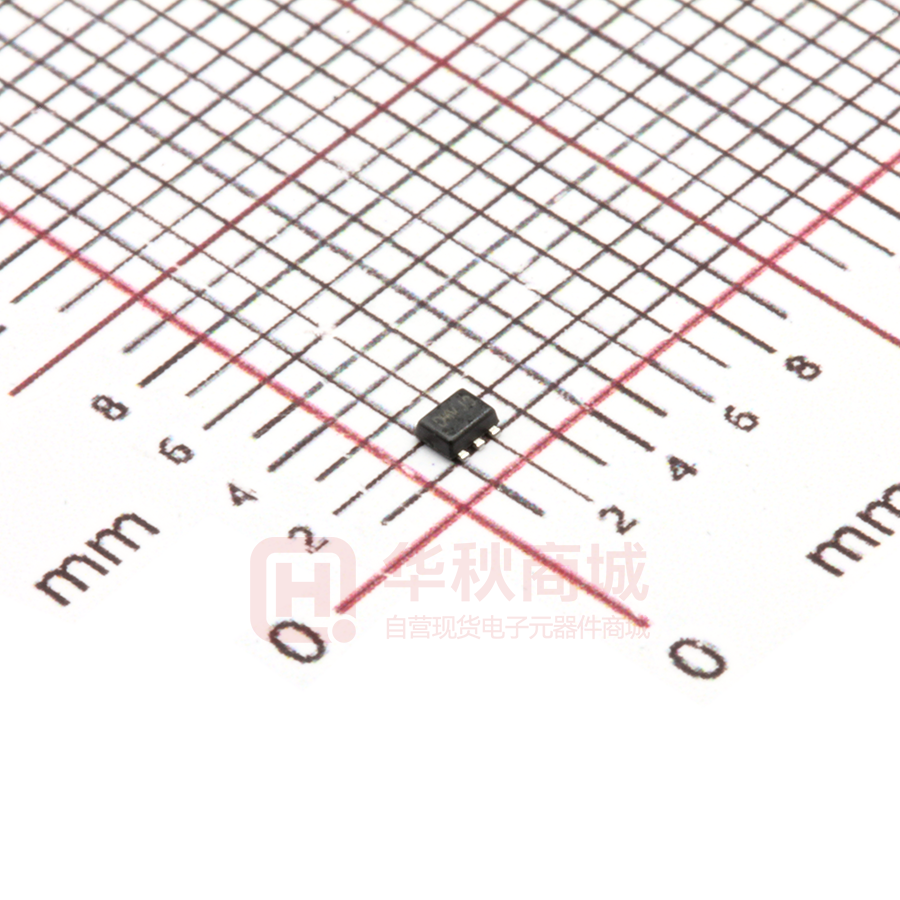

DMP2104V-7

DMP2104V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary RDS(ON) max ID max TA = +25°C  Very Low On-Resistance  Very Low Gate Threshold Voltage 150mΩ @ VGS = -4.5V -1.9A  Low Input Capacitance 200mΩ @ VGS = -2.5V -1.7A  Fast Switching Speed  Low Input/Output Leakage  Ultra-Small Surface Mount Package  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability V(BR)DSS -20V Features Description This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Mechanical Data Applications  Backlighting  Power Management Functions  DC-DC Converters  Motor Control SOT-563 Top View  Case: SOT-563  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminal Connections: See Diagram  Terminals: Finish - Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208  Weight: 0.006 grams (Approximate) D D S D D G Top View Internal Schematic Ordering Information (Note 4) Part Number DMP2104V-7 Notes: Case SOT-563 Packaging 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
