DMP2110UW
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) max
ID max
TA = +25°C
100mΩ @ VGS = -4.5V
-2.0A
120mΩ @ VGS = -2.5V
-1.9A
160mΩ @ VGS = -1.8V
-1.6A
BVDSS
-20V
Features and Benefits
Description
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) yet maintain superior switching performance, making it ideal
for high-efficiency power management applications.
Mechanical Data
Applications
Motor Control
Power Management Functions
Backlighting
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/

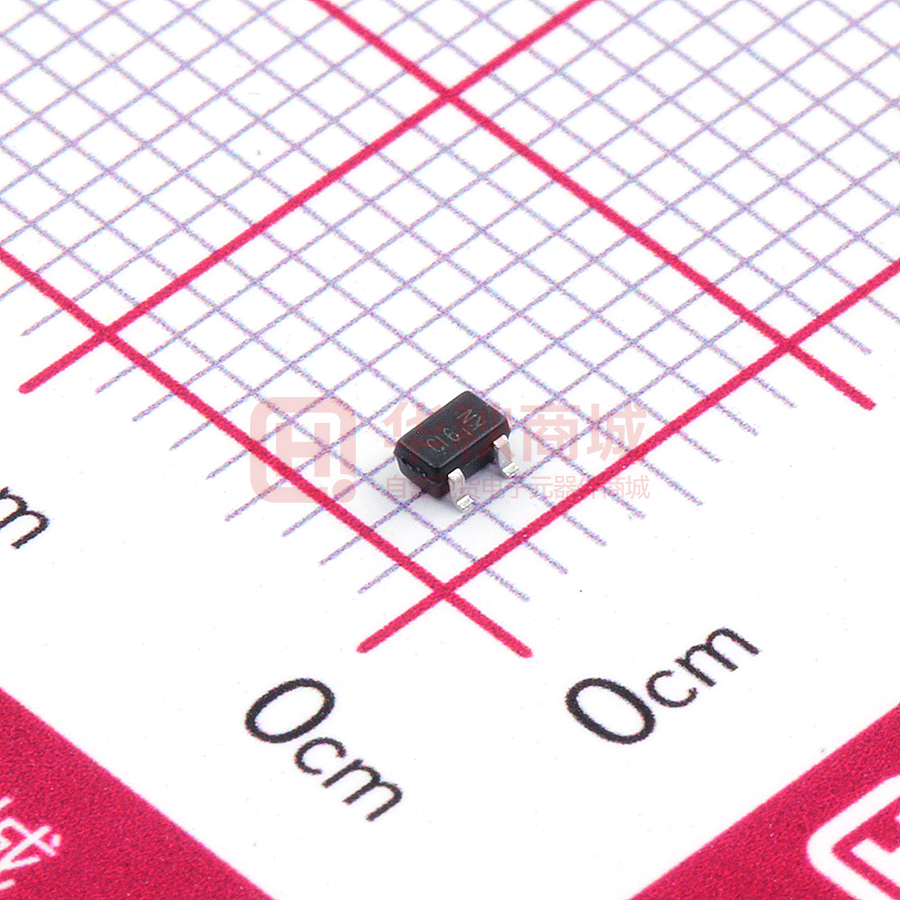

SOT323
Case: SOT323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish—Matte Tin Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
D
D
G
G
S
S
Top View
Internal Schematic
Top View
Ordering Information (Note 4)
Notes:
Part Number
Case
Packaging
DMP2110UW-7
SOT323
3000/Tape & Reel
DMP2110UW-13
SOT323
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
