DMP2120U
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS
Features and Benefits
ID Max
TA = +25°C
RDS(ON) Max
62mΩ @ VGS = -4.5V
-3.8A
90mΩ @ VGS = -2.5V
-3.1A
-20V
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description and Applications
Mechanical Data
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)), yet maintain superior switching performance, making it
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Terminals Connections: See Diagram Below
Weight: 0.009 grams (Approximate)
ideal for high-efficiency power management applications.
Battery Charging
Power Management Functions
DC-DC Converters
Portable Power Adaptors
D
SOT23
D
G
S
G
S
Top View
Top View
Internal Schematic
Ordering Information (Note 4)
Notes:
Part Number
Case
Packaging

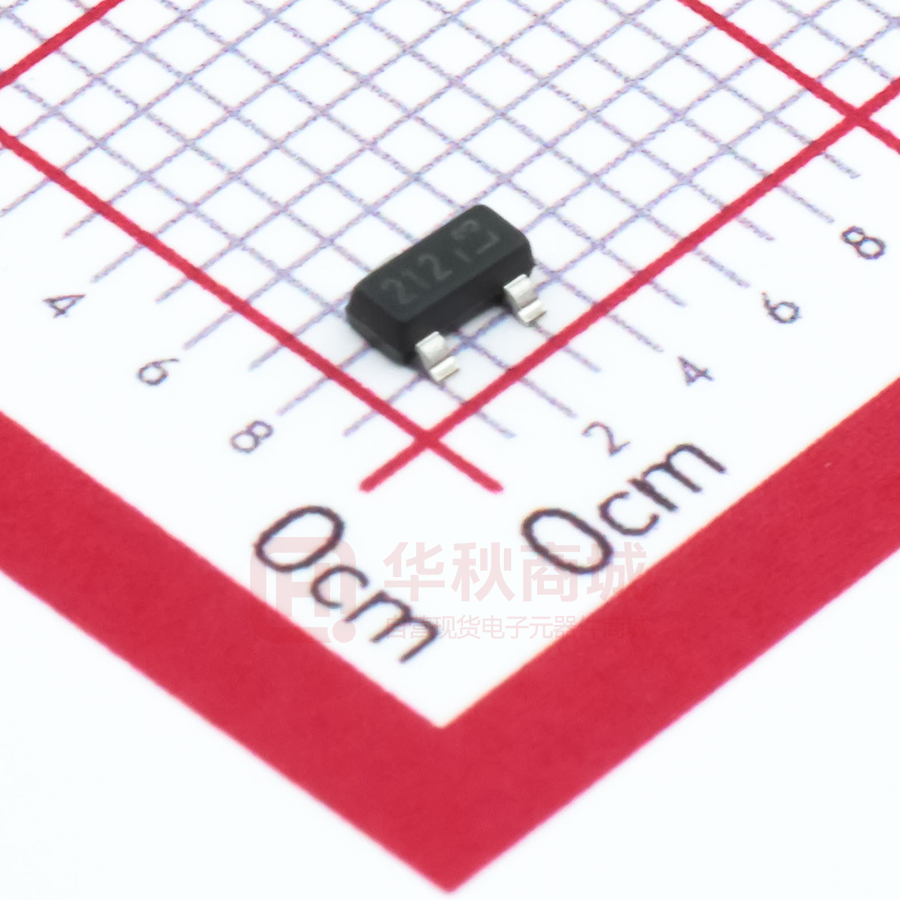

DMP2120U-7
SOT23
3,000/Tape & Reel
DMP2120U-13
SOT23
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain
