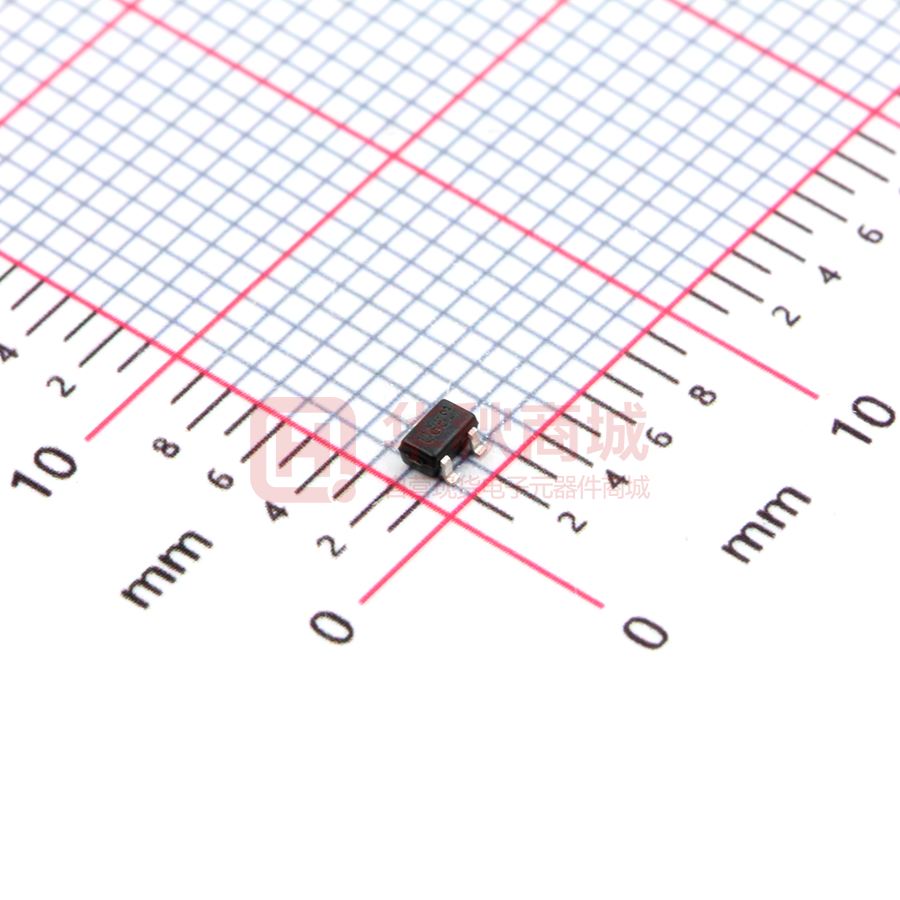

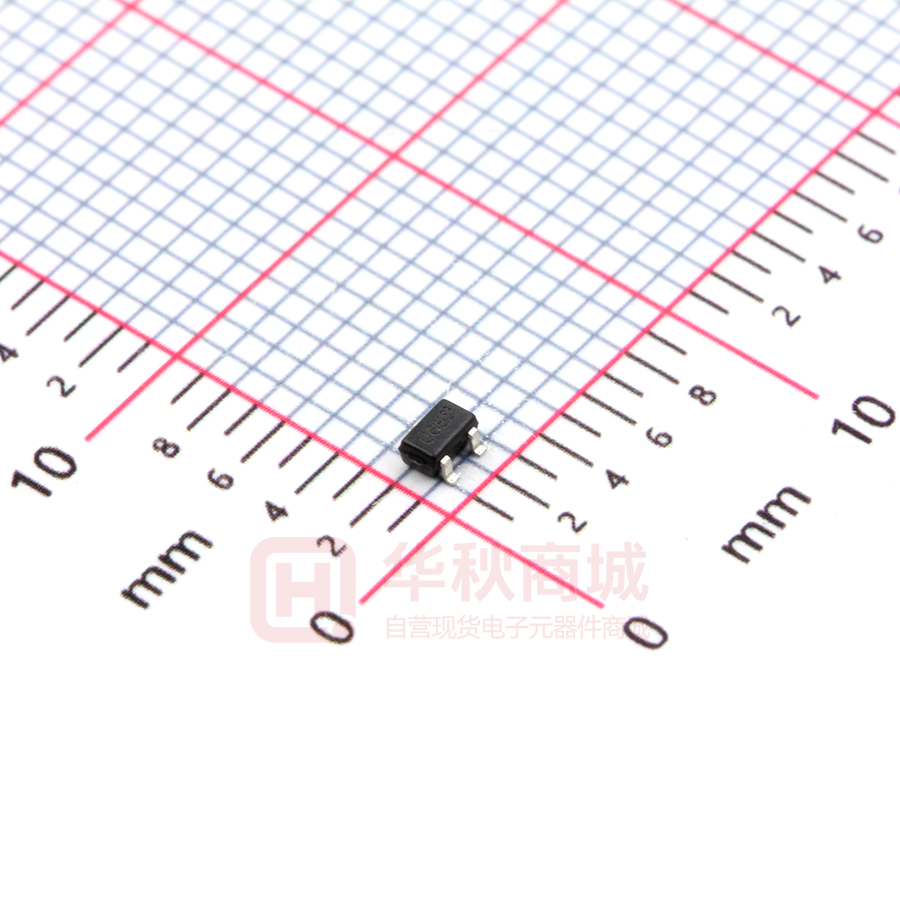

DMP2165UW-7

DMP2165UW P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary RDS(ON) max ID max TA = +25°C  Low On-Resistance  Low Input Capacitance 90mΩ @VGS = -4.5V -2.5A  Fast Switching Speed 120mΩ @VGS = -2.5V -2.0A  Low Input/Output Leakage   Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) BVDSS -20V Features and Benefits Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it Mechanical Data ideal for high efficiency power management applications.  Case: SOT323  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208 e3  Weight: 0.006 grams (Approximate) Applications    Motor Control Power Management Functions Backlighting D SOT323 D G S G S Top View Top View Equivalent Circuit Ordering Information (Note 4) Part Number DMP2165UW-7 DMP2165UW-13 Notes: Case SOT323 SOT323 Packaging 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
