DMP2305U
Features
Mechanical Data
Low On-Resistance
60mΩ @ VGS = -4.5V
90mΩ @ VGS = -2.5V
113mΩ @ VGS = -1.8V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)

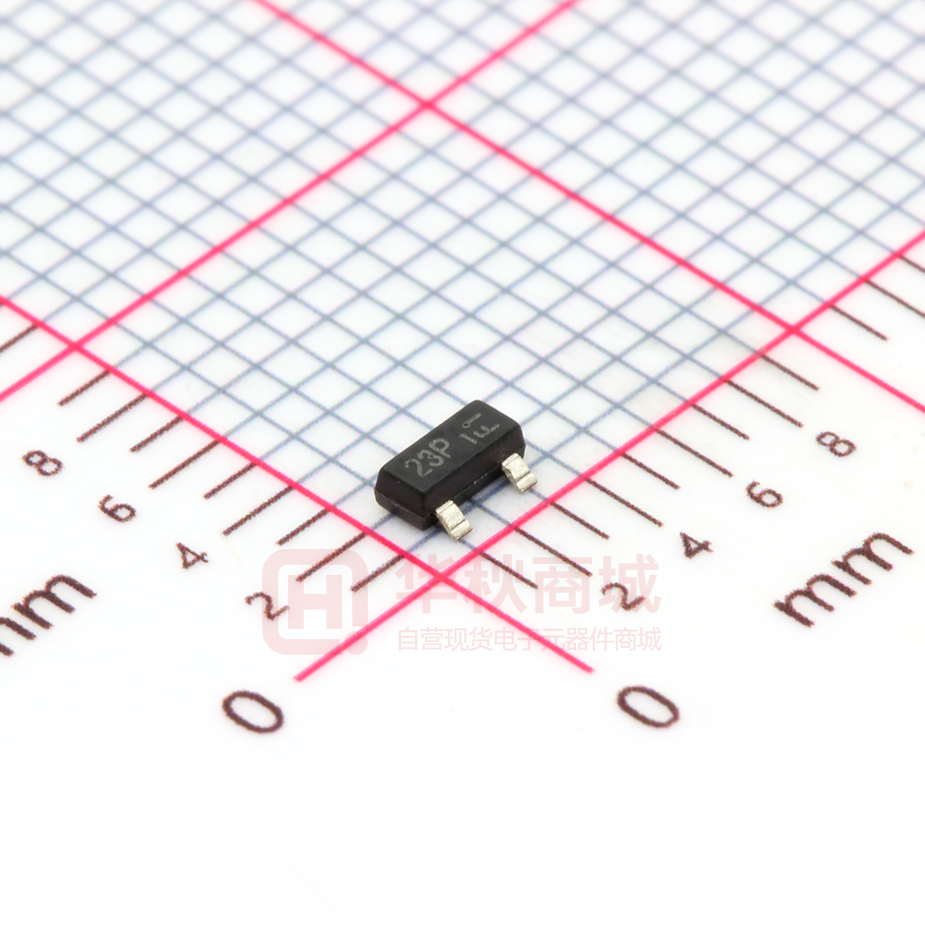

Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Terminals Connections: See Diagram Below
Weight: 0.008 grams (approximate)
Drain
D
Gate
Top View
Internal Schematic
Top View
S
G
Source
Ordering Information (Note 4&5)
Part Number
DMP2305U-7
DMP2305UQ-7
Notes:
Qualification
Standard
Automotive
Case
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
