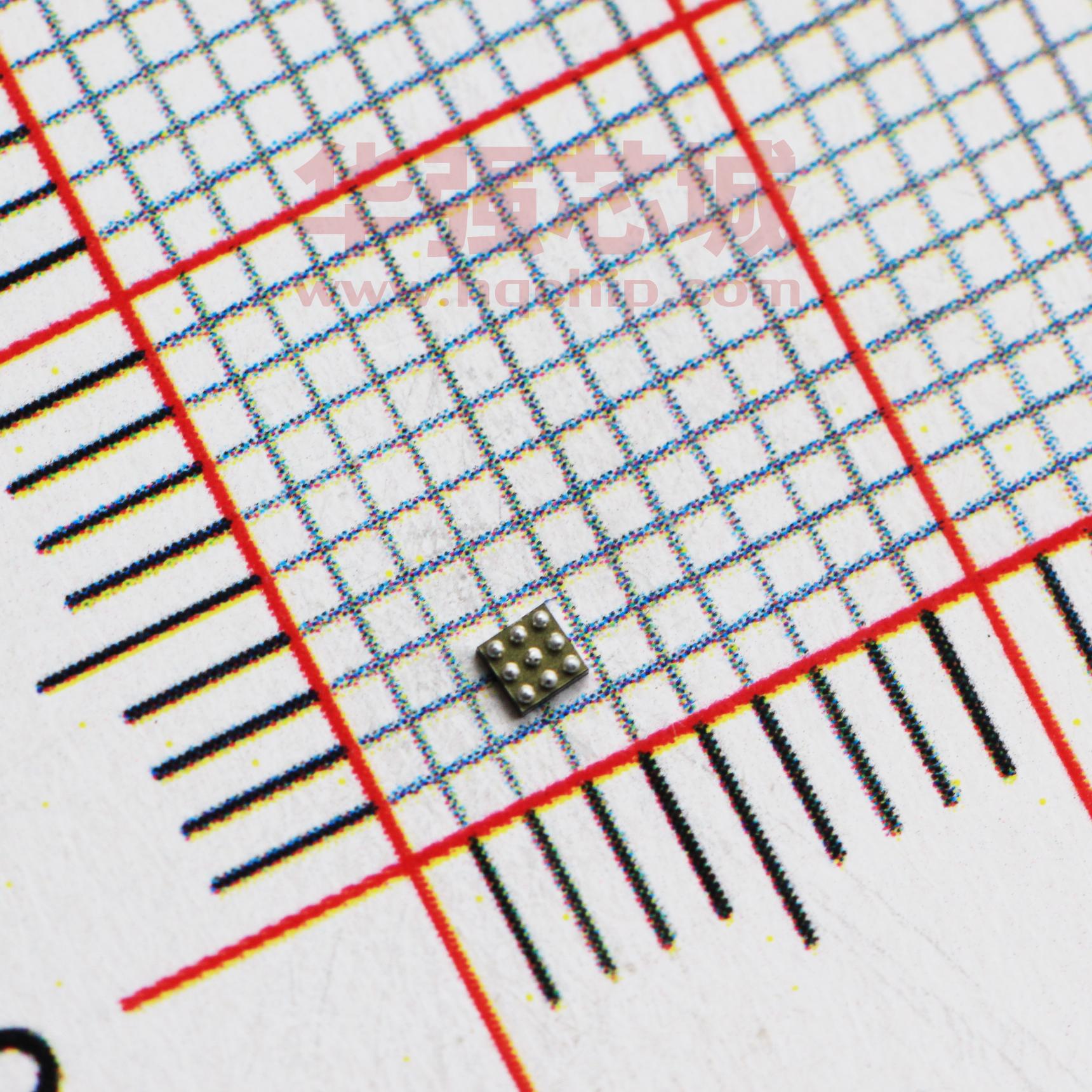

DMP2540UCB9-7

NOT RECOMMENDED FOR NEW DESIGN USE DMP2541UCB9 DMP2540UCB9 P-CHANNEL ENHANCEMENT MODE MOSFET NEW PRODUCT ADVANCE INFORMATION Product Summary (Typ. @ VGS = -4.5V, TA Features and Benefits = +25°C)  BVDSS RDS(ON) Qg Qgd ID -25V 33mΩ 4.8nC 1.0nC -5.2A  LD-MOS Technology with the Lowest Figure of Merit: RDS(ON) = 33mΩ to Minimize On-State Losses Qg = 4.8nC for Ultra-Fast Switching Vgs(th) = -0.6V Typ. for a Low Turn-On Potential       CSP with Footprint 1.5mm × 1.5mm Height = 0.62mm for Low Profile ESD = 6kV HBM Protection of Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description and Applications Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance,    making it ideal for high efficiency power management applications.    Case: U-WLB1515-9 Terminal Connections: See Diagram Below Weight: 0.0018 grams (Approximate) Battery Management Load Switch Battery Protection Drain G D S D D S Gate D ESD PROTECTED TO 6kV S S Gate Protection Diode Top-View Pin Configuration Source Equivalent Circuit Ordering Information (Note 4) Part Number DMP2540UCB9-7 Notes: Case U-WLB1515-9 Packaging 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
