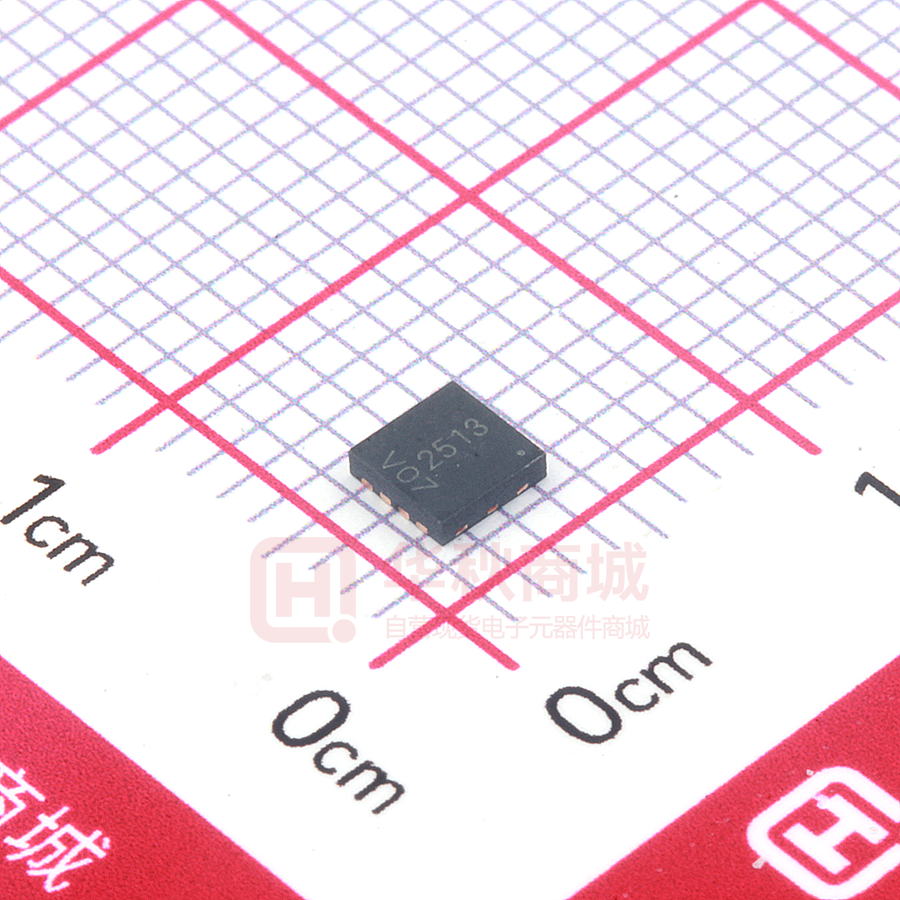

DMP3007SCG-7

DMP3007SCG 30V P-CHANNEL ENHANCEMENT MODE MOSFET RDS(ON) Max ID Max TC = +25°C 6.8mΩ @ VGS = -10V -50A 13mΩ @ VGS = -4.5V -36A BVDSS -30V Features and Benefits  Low RDS(ON) – Ensures On State Losses are Minimized  Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product HBM ESD Protection Level of 8kV Typical Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)     Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it Mechanical Data ideal for high-efficiency power management applications.   Applications      Backlighting Power Management Functions DC-DC Converters Case: V-DFN3333-8 (Type B) Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Below Diagram Terminals: Finish –NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4  Weight: 0.030 grams (Approximate) D Pin 1 S S S G G D ESD PROTECTED Top View D D Gate Protection Diode D S Equivalent Circuit Bottom View Ordering Information (Note 4) Part Number DMP3007SCG-7 DMP3007SCG-13 Notes: Case V-DFN3333-8 (Type B) V-DFN3333-8 (Type B) Packaging 2,000/Tape & Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
