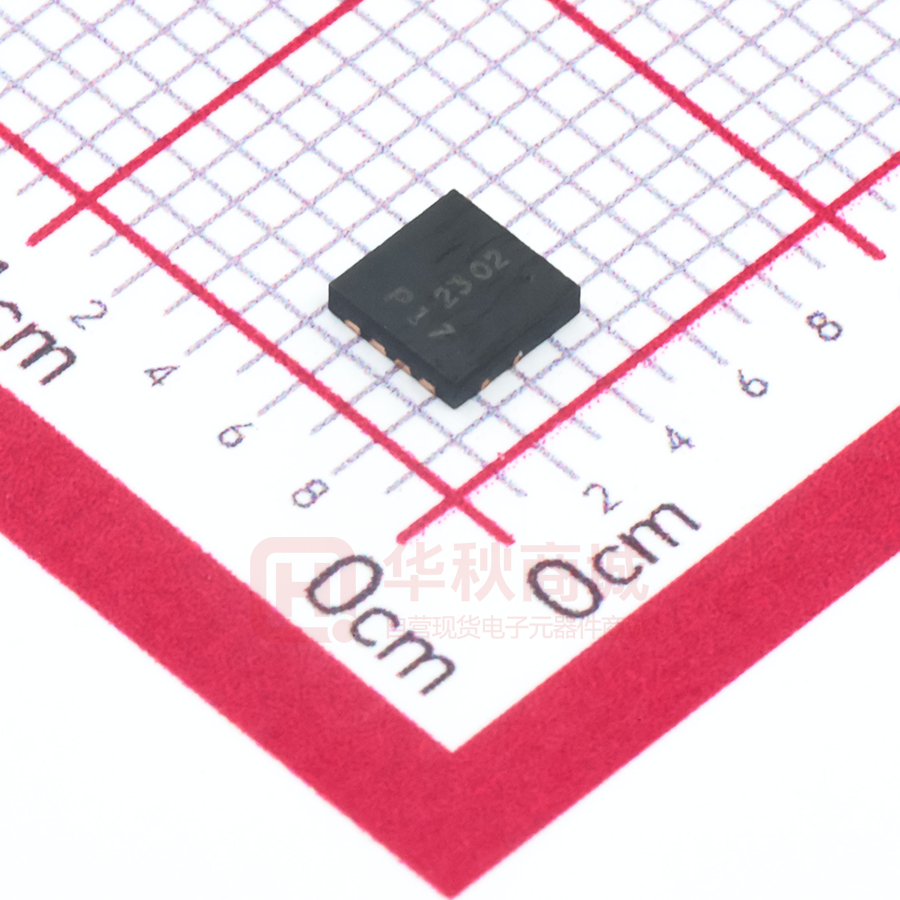

DMP3017SFG-7

NOT RECOMMENDED FOR NEW DESIGN USE DMP3013SFV DMP3017SFG 30V P-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8 RDS(ON) max ID max TA = +25°C 10mΩ @ VGS = -10V -11.5A 18mΩ @ VGS = -4.5V -8.7A BVDSS -30V Features and Benefits  Low RDS(ON) – Ensures on state losses are minimized  Small form factor thermally efficient package enables higher density end products Occupies just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (DMP3017SFGQ)       Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Mechanical Data Applications      Backlighting Power Management Functions DC-DC Converters Case: PowerDI3333-8 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Diagram Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.072 grams (Approximate)    D Pin 1 S S S G G D ESD PROTECTED D D Gate Protection Diode D Top View Bottom View S Equivalent Circuit Ordering Information (Note 4) Part Number DMP3017SFG-7 DMP3017SFG-13 Notes: Case PowerDI3333-8 PowerDI3333-8 Packaging 2,000/Tape & Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green" products are defined as those which contain
