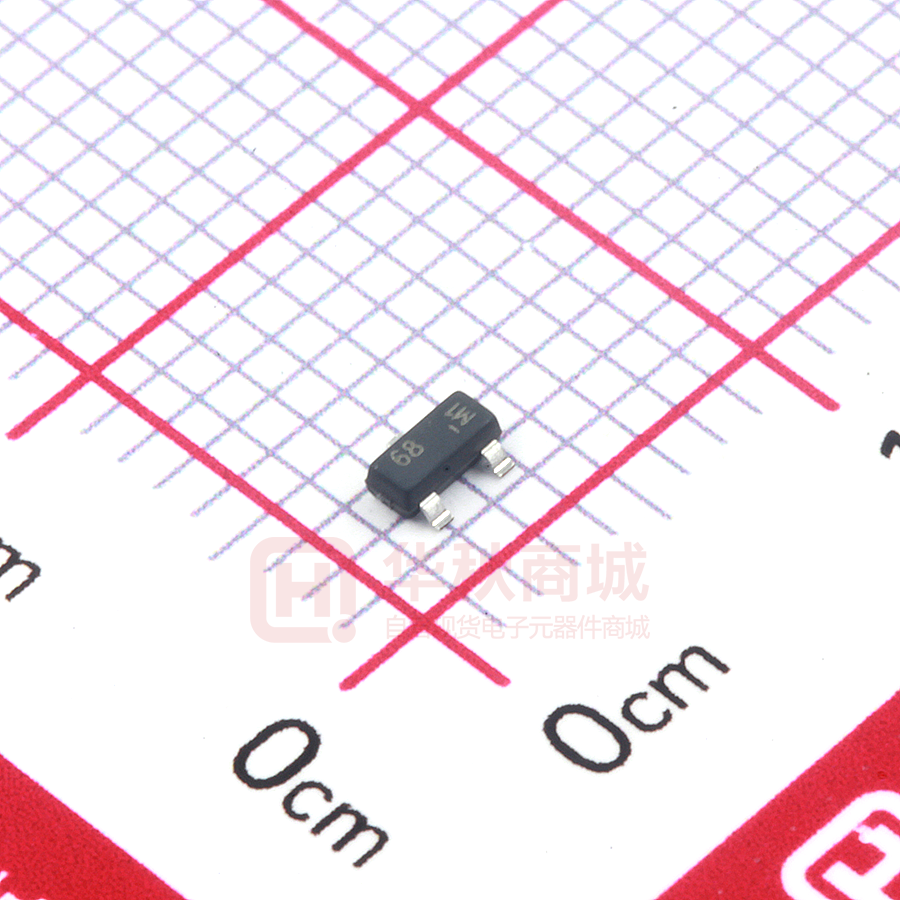

DMP3068L
30V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS
RDS(on) max
72mΩ @ VGS = -10V
-30V
85mΩ @ VGS = -4.5V
Features
Package
SOT-23
•
•
•
•
•
•
•
•
ID max
TA = +25°C
-3.9A
-3.6A
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified
facilities), please contact us or your local Diodes
representative.
https://www.diodes.com/quality/product-definitions/
Description and Applications
Mechanical Data
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(on)) and yet maintain superior switching
•
Case: SOT23 (Standard)
•
Case Material: Molded Plastic.
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Lead-Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe).
•
Terminals: Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.006 grams (Approximate)
performance, making it ideal for high-efficiency power management
applications.
UL Flammability Classification Rating 94V-0
SOT23
D
D
G
Top View
S
Top View
Pin Configuration
G
S
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMP3068L-7
DMP3068L-13
Notes:
Case
SOT23 (Standard)
SOT23 (Standard)
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
