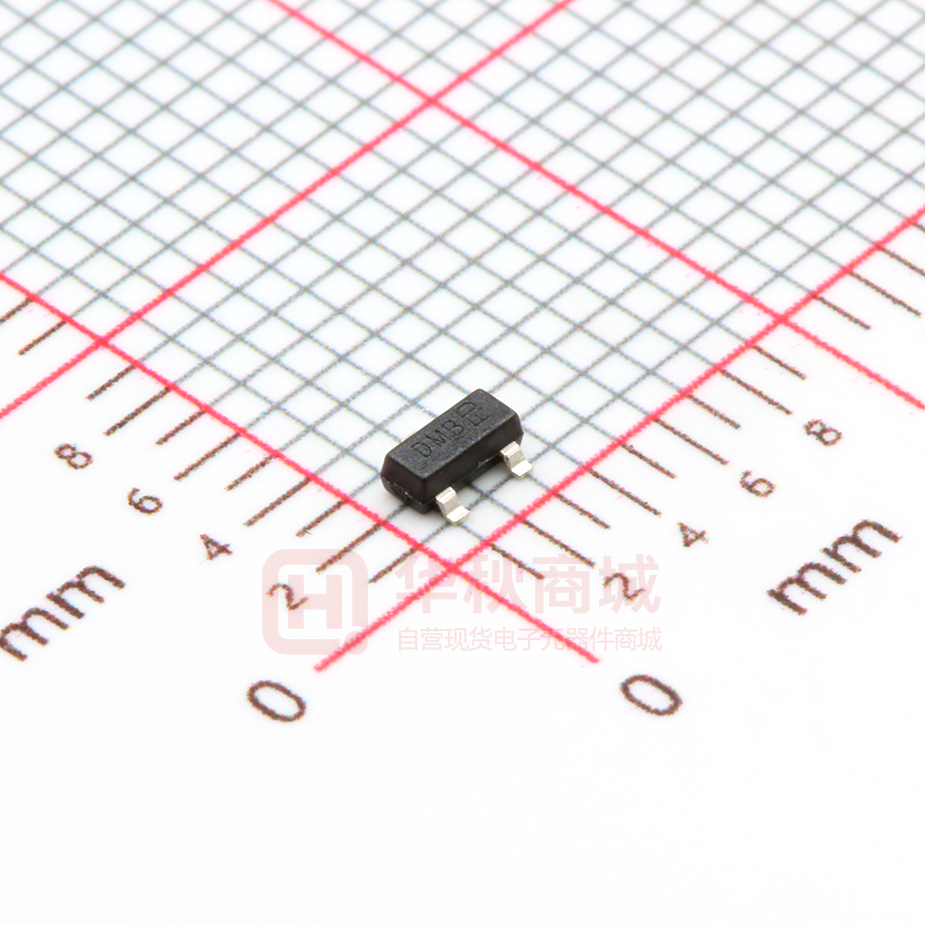

DMP3098L-7

DMP3098L P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS         ID RDS(on) max TA = +25°C 70mΩ@ VGS = -10V -3.8A 120mΩ@ VGS =-4.5V -3.0A Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description and Applications Mechanical Data This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.       Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish  Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Weight: 0.008 grams (approximate)   Power management functions Analog Switch Load Switch Boost Switch   Drain SOT-23 D Gate S G Source Top View EQUIVALENT CIRCUIT Pin Configuration Ordering Information (Note 4) Part Number DMP3098L-7 Notes: Case SOT23 Packaging 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.  3. Halogen- and Antimony-free "Green” products are defined as those which contain
