DMP3098LQ
P-CHANNEL ENHANCEMENT MODE MOSFET
Features and Benefits
V(BR)DSS
RDS(on) max
-30V
70mΩ@ VGS = -10V
120mΩ@ VGS = -4.5V
ID
TA = +25°C
-3.8A
-3.0A
Description and Applications
•
Low On-Resistance
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching
•
PPAP Capable (Note 4)
performance, making it ideal for high efficiency power management
Mechanical Data
applications.
•
Power Management Functions
•
Analog Switch
•
Load Switch
•
Boost Switch
•

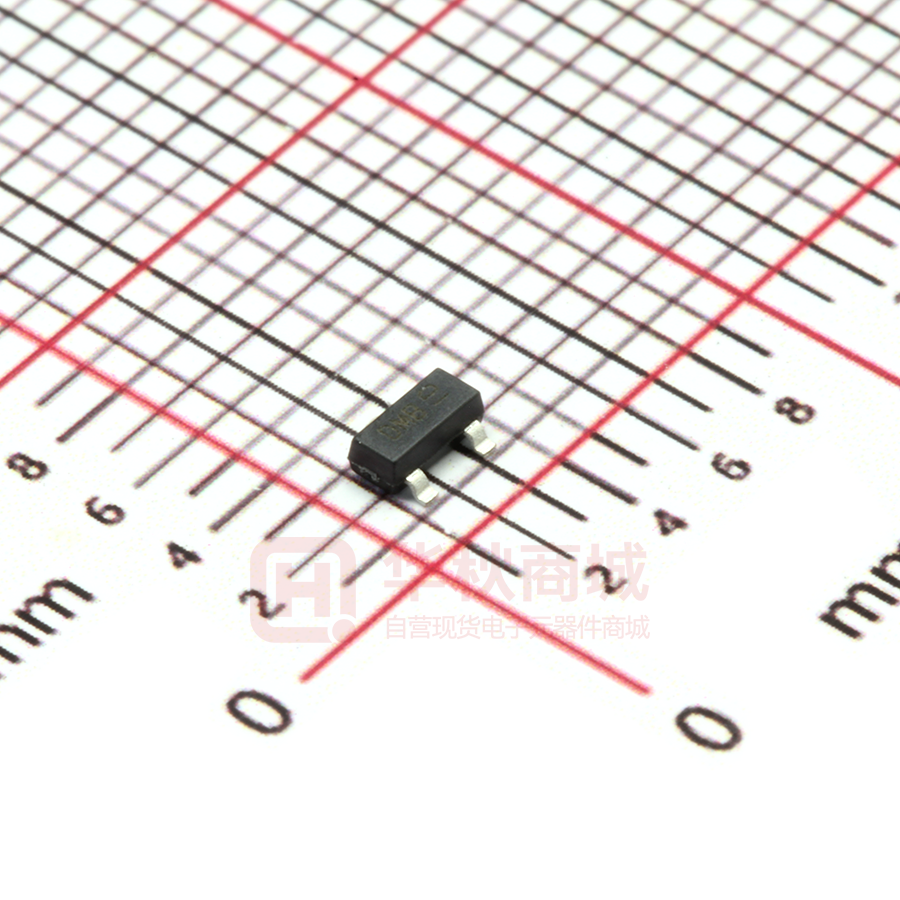

Case: SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish ⎯ Matte Tin annealed over Copper Leadframe
•
Solderable per MIL-STD-202, Method 208 e3
Terminal Connections: See Diagram
•
Weight: 0.008 grams (approximate)
Drain
SOT23
D
Gate
S
G
Source
Top View
Pin Configuration
Equivalent Circuit
Ordering Information (Note 5)
Part Number
DMP3098LQ-7
Notes:
Case
SOT23
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
