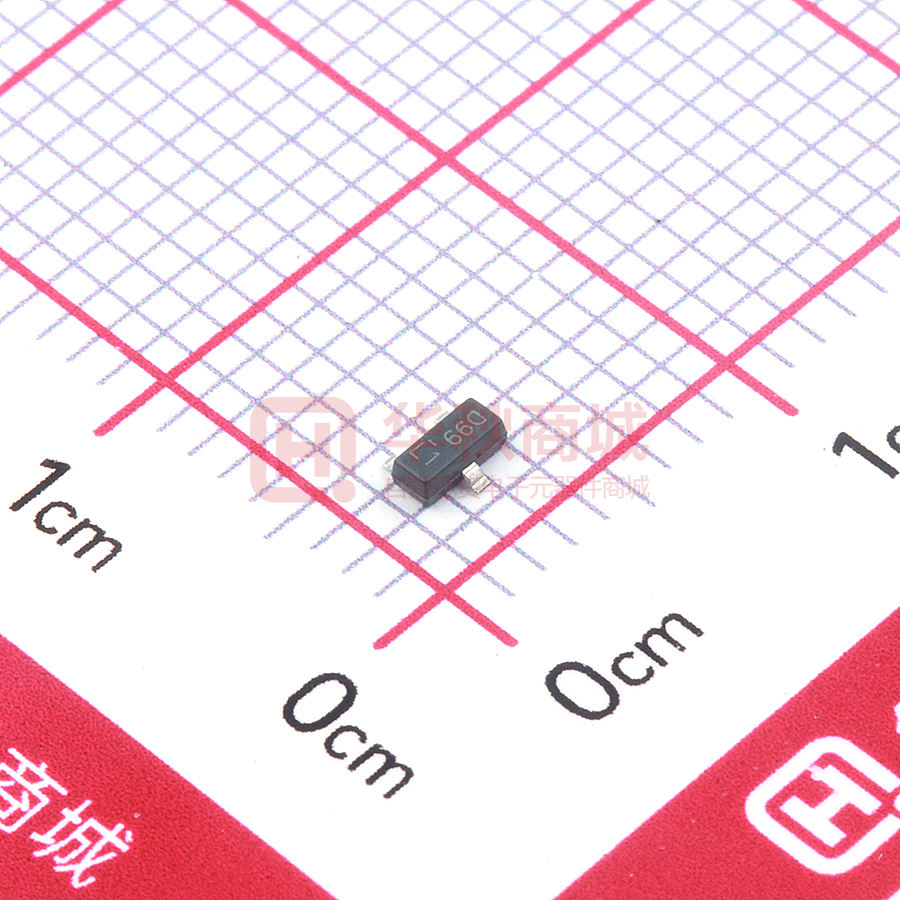

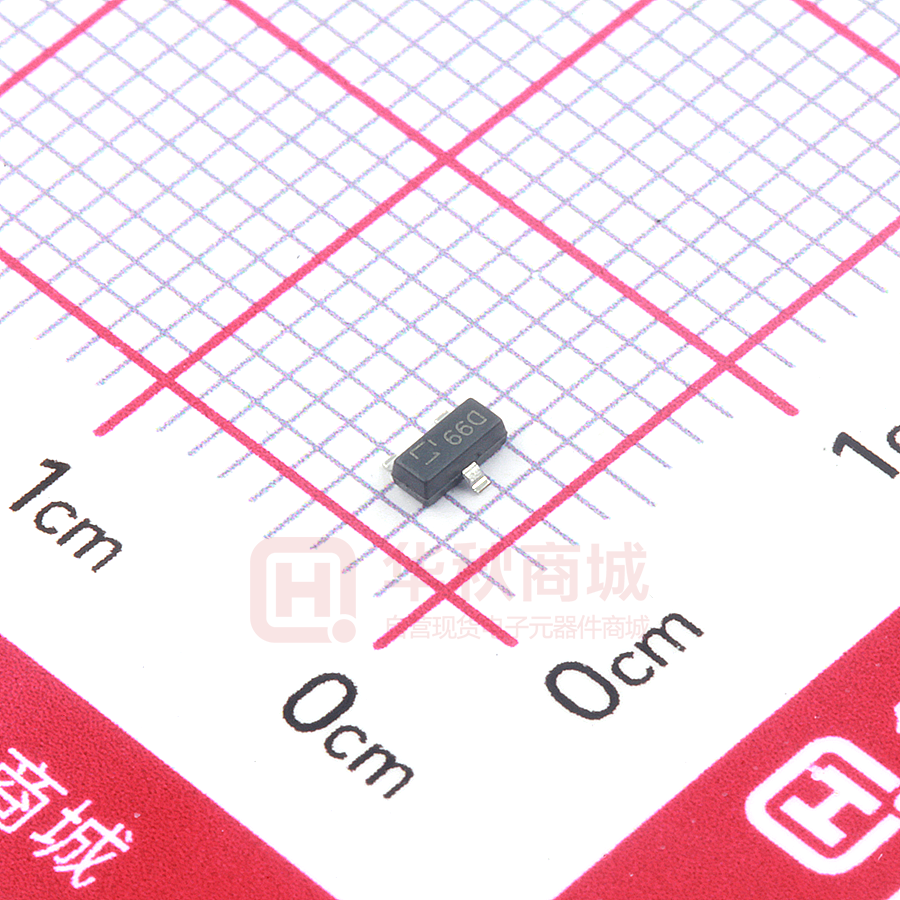

DMP3099L
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(on) max
ID max
TA = +25°C
65mΩ @ VGS = -10V
-3.8A
99mΩ @ VGS = -4.5V
-3.0A
V(BR)DSS
-30V
Features and Benefits
•
•
•
•
•
•
•
Description
This MOSFET has been designed to minimize the on-state resistance
(RDS(on)) and yet maintain superior switching performance, making it
ideal for high-efficiency power management applications.
Mechanical Data
Applications
•
•
•
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
•
•
Backlighting
Power Management Functions
DC-DC Converters
•
•
•
•
Case: SOT23 (Standard)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: FinishMatte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208 e3
Terminal Connections: See Diagram
Weight: 0.008 grams (approximate)
D
SOT23
G
Top View
S
Top View
Pin Configuration
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMP3099L-7
DMP3099L-13
Notes:
Compliance
Standard
Standard
Case
SOT23 (Standard)
SOT23 (Standard)
Packaging
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
