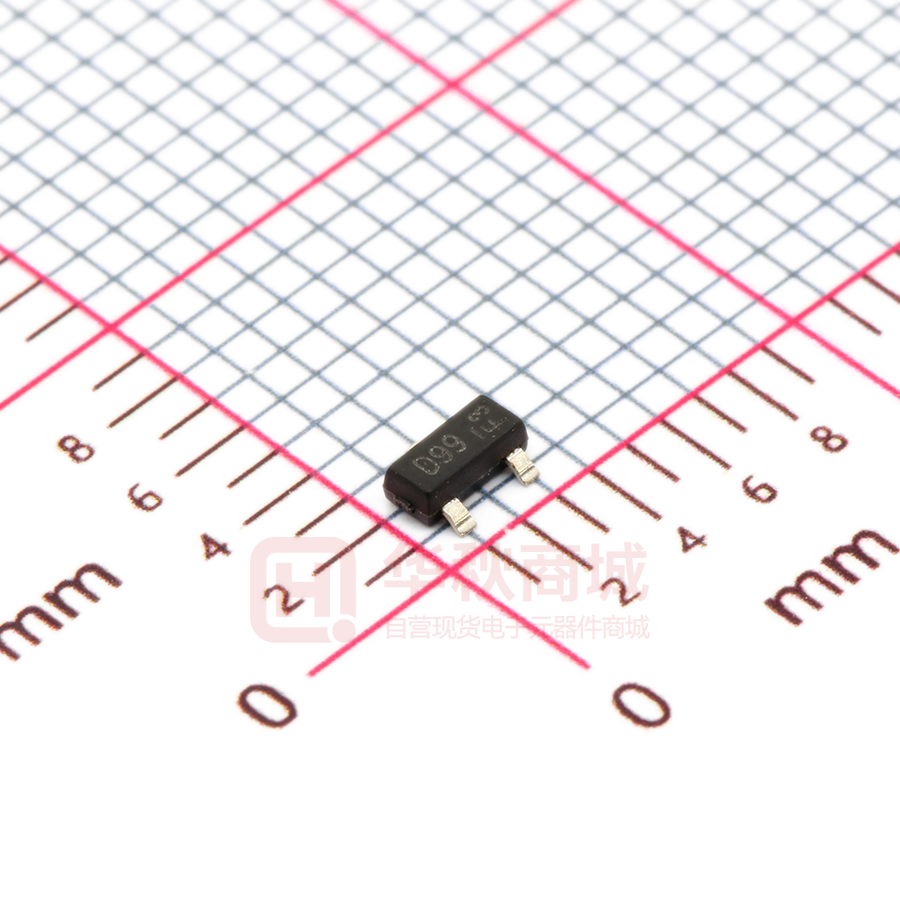

DMP3099L-7

DMP3099L P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary RDS(ON) max ID max TA = +25°C  Low Gate Threshold Voltage  Low Input Capacitance 65mΩ @ VGS = -10V -3.8A  Fast Switching Speed 99mΩ @ VGS = -4.5V -3.0A  Low Input/Output Leakage  Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) V(BR)DSS  Halogen and Antimony Free. “Green” Device (Note 3)  Description  Qualified to AEC-Q101 Standards for High Reliability This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it Mechanical Data ideal for high efficiency power management applications.  Case: SOT23  Applications Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Backlighting  Power Management Functions  DC-DC Converters  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 e3  Terminal Connections: See Diagram  Weight: 0.008 grams (approximate) D SOT23 S G Top View Top View Pin Configuration Equivalent Circuit Ordering Information (Note 4) Part Number DMP3099L-7 DMP3099L-13 Notes: Compliance Standard Standard Case SOT23 SOT23 Packaging 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
