DMP6023LFGQ
60V P-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
RDS(ON) max
ID max
TA = +25°C
25mΩ @ VGS = -10V
-7.7A
33mΩ @ VGS = -4.5V
-6.8A
V(BR)DSS
-60V
Features and Benefits
Low RDS(ON) – ensures on state losses are minimized
Small form factor thermally efficient package enables higher
density end products
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description and Applications
Mechanical Data
This MOSFET is designed to meet the stringent requirements of
automotive applications. It is qualified to AECQ101, supported by a
PPAP and is ideal for use in:
Backlighting
Power Management Functions
DC-DC Converters

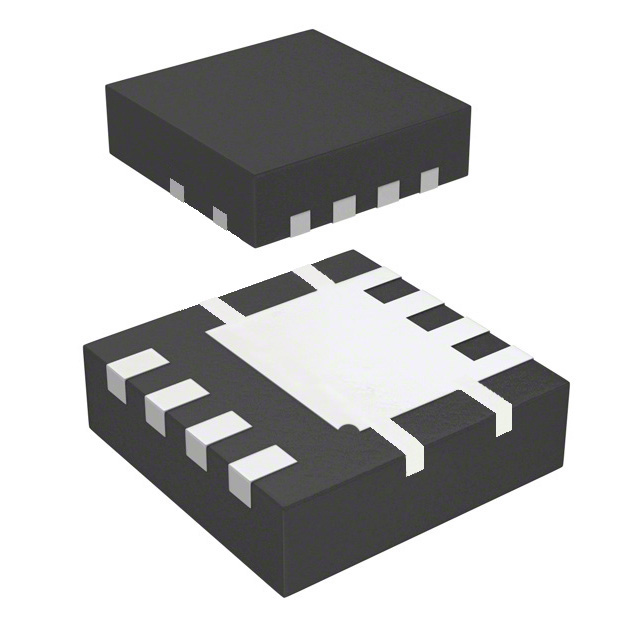

Case: POWERDI®3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.072 grams (Approximate)
POWERDI®3333-8
D
Pin 1
S
S
S
G
G
D
D
D
D
S
Bottom View
Top View
Equivalent Circuit
Ordering Information (Note 5)
Part Number
DMP6023LFGQ-7
DMP6023LFGQ-13
Notes:
Case
POWERDI®3333-8
POWERDI®3333-8
Packaging
2,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
