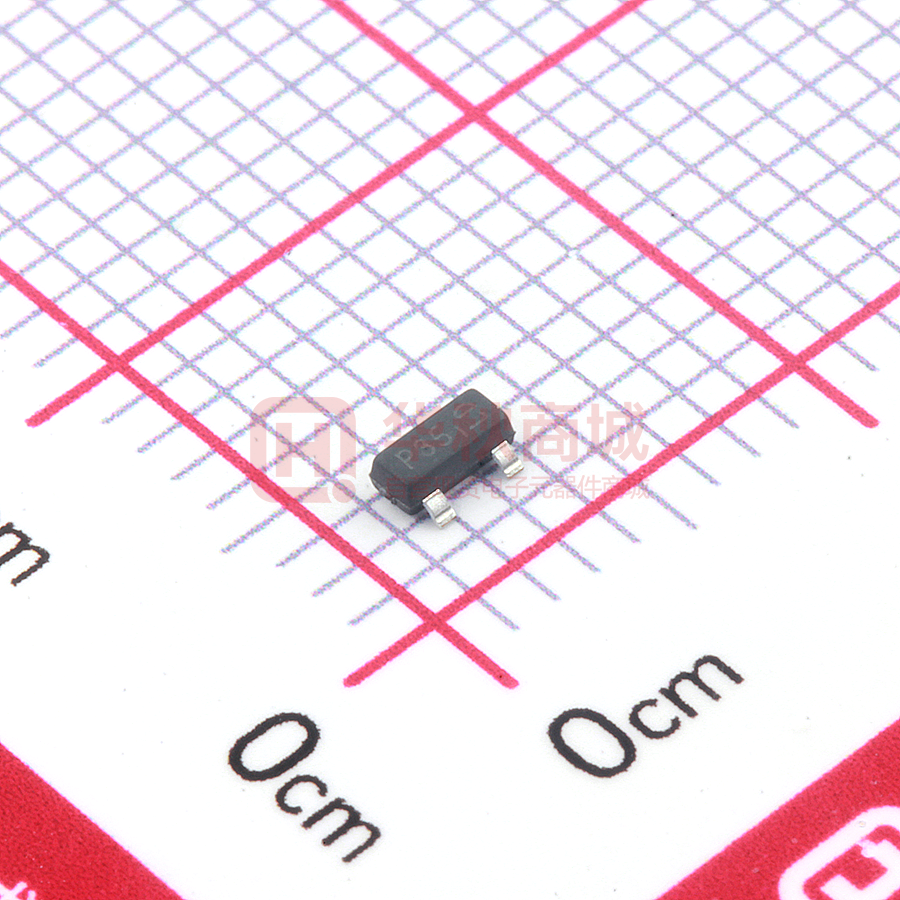

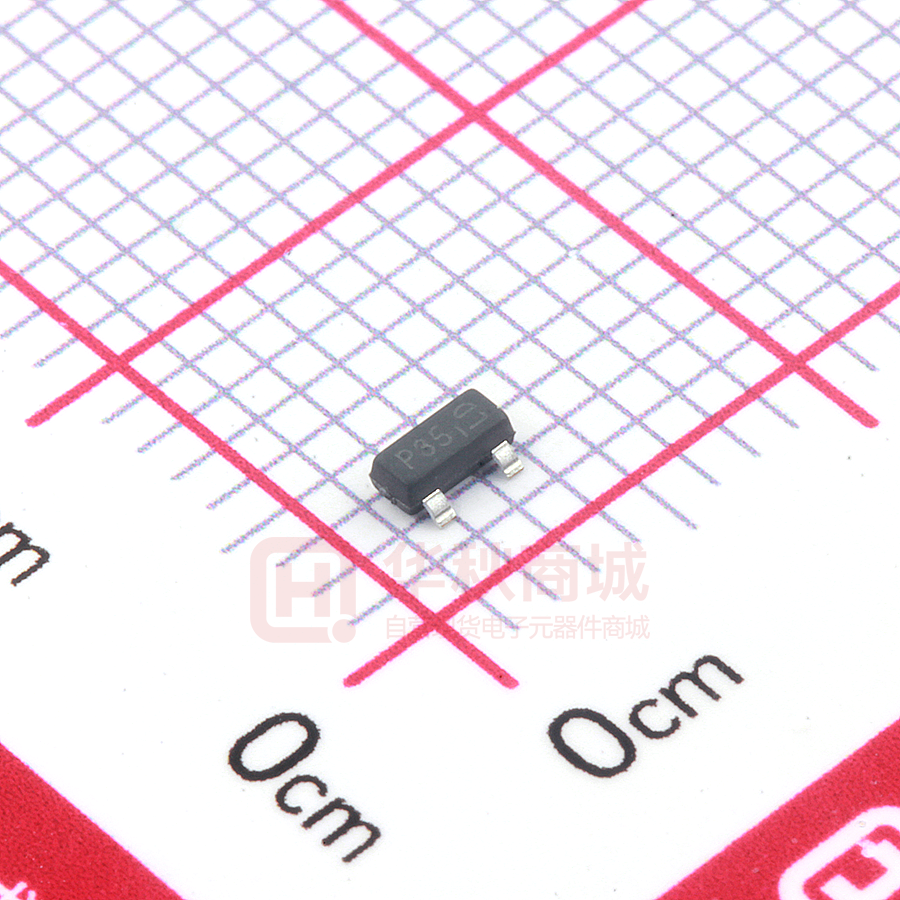

DMP6350S-7

DMP6350S 60V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS Features and Benefits ID Max TA = +25°C RDS(ON) Max 350mΩ @ VGS = -10V -1.5A 550mΩ @ VGS = -4.5V -1.2A -60V  Low On-Resistance  Low Input Capacitance  Fast Switching Speed  Low Input/Output Leakage    Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish  Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 ideal for high-efficiency power management applications.  Battery Charging  Power Management Functions  Terminals Connections: See Diagram Below  DC-DC Converters  Weight: 0.009 grams (Approximate)  Portable Power Adaptors D D G S G S Top View Internal Schematic Top View Ordering Information (Note 4) Notes: Part Number Case Packaging DMP6350S-7 SOT23 3,000/Tape & Reel DMP6350S-13 SOT23 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
