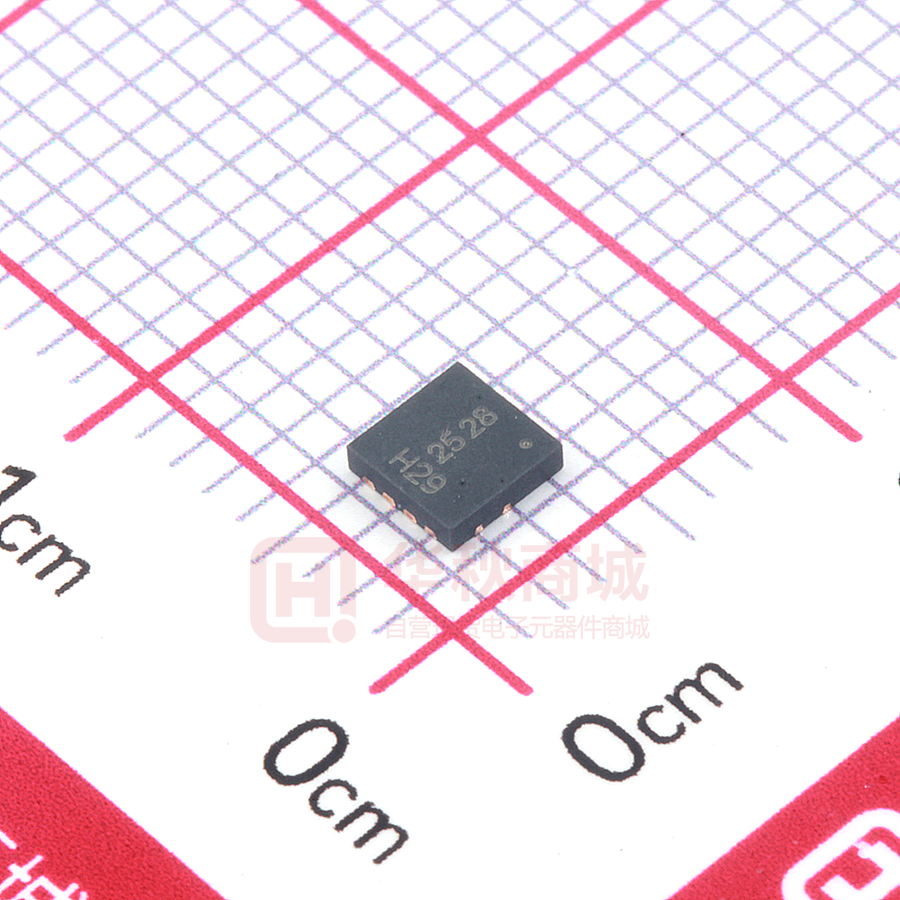

DMPH4029LFGQ-7

DMPH4029LFGQ Green 40V 175°C P-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8 Product Summary RDS(ON) Max ID Max TA = +25°C • 29mΩ @ VGS = -10V -8.0A • 45mΩ @ VGS = -4.5V -6.0A BVDSS -40V Features and Benefits • • • • • • • Rated to +175°C—Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching Test in Production— Ensures More Reliable and Robust End Application Low RDS(ON)—Ensures On State Losses Are Minimized Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Description and Applications Mechanical Data This MOSFET is designed to meet the stringent requirements of Automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: • Case: PowerDI 3333-8 • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Diagram Terminals: Finish—Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.072 grams (Approximate) • • • • • • Backlighting Power Management Functions DC-DC Converters • ® D PowerDI3333-8 Pin 1 S S S G G D D D S D Bottom View Top View Equivalent Circuit Ordering Information (Note 5) Part Number DMPH4029LFGQ-7 DMPH4029LFGQ-13 Notes: Case PowerDI3333-8 PowerDI3333-8 Packaging 2000/Tape & Reel 3000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
