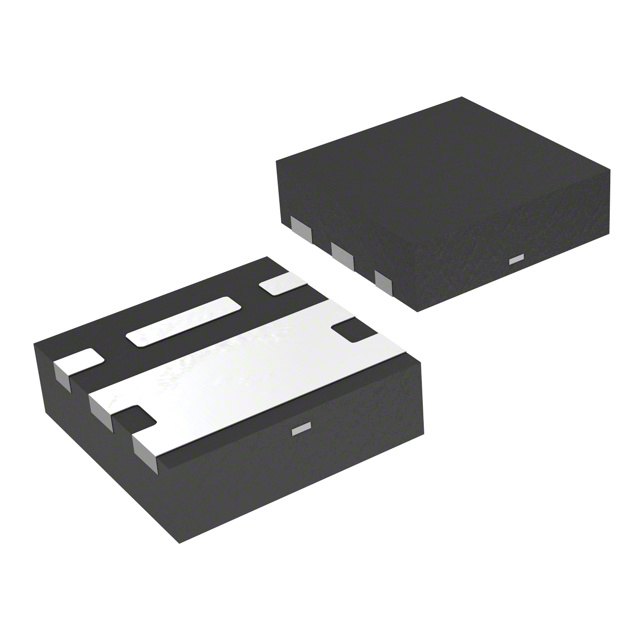

DMT12H090LFDF4-7

DMT12H090LFDF4 115V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 115V BVDSS @TJmax 120V Features and Benefits ID Max RDS(ON) Max TA = +25°C 90mΩ @ VGS = 10V 3.4A 100mΩ @ VGS = 4.5V 2.3A       0.4mm Profile—Ideal for Low Profile Applications PCB Footprint of 4mm2 100% Unclamped Inductive Switching (UIS) Test in Production— Ensures More Reliable and Robust End Application Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Description Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance,   which makes it ideal for high-efficiency power management applications. Applications       DC-DC Primary Switch Load Switch Case: X2-DFN2020-6 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Terminals: Finish—NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.006 grams (Approximate) D X2-DFN2020-6 (Type W) G Pin1 Top View Pin Out Bottom View Bottom View S Equivalent Circuit Ordering Information (Note 4) Part Number DMT12H090LFDF4-7 DMT12H090LFDF4-13 Notes: Case X2-DFN2020-6 (Type W) X2-DFN2020-6 (Type W) Quantity Per Reel 3,000 10,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
