DMT3009LDT
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Device
BVDSS
Q1 & Q2
30V
Features and Benefits
RDS(ON) Max
•
•
•
•
ID Max
TC = +25°C
(Note 10)
11.1mΩ @ VGS = 10V
30A
13.8mΩ @ VGS = 4.5V
28A
22.0mΩ @ VGS = 3.8V
22A
Low Gate Threshold Voltage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen- and Antimony-Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Description
Mechanical Data
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(ON)), yet maintain superior switching performance,
•
•
making it ideal for high-efficiency power management applications.
•
•
Applications
•
•
General Purpose Interfacing Switch
Power Management Functions
•

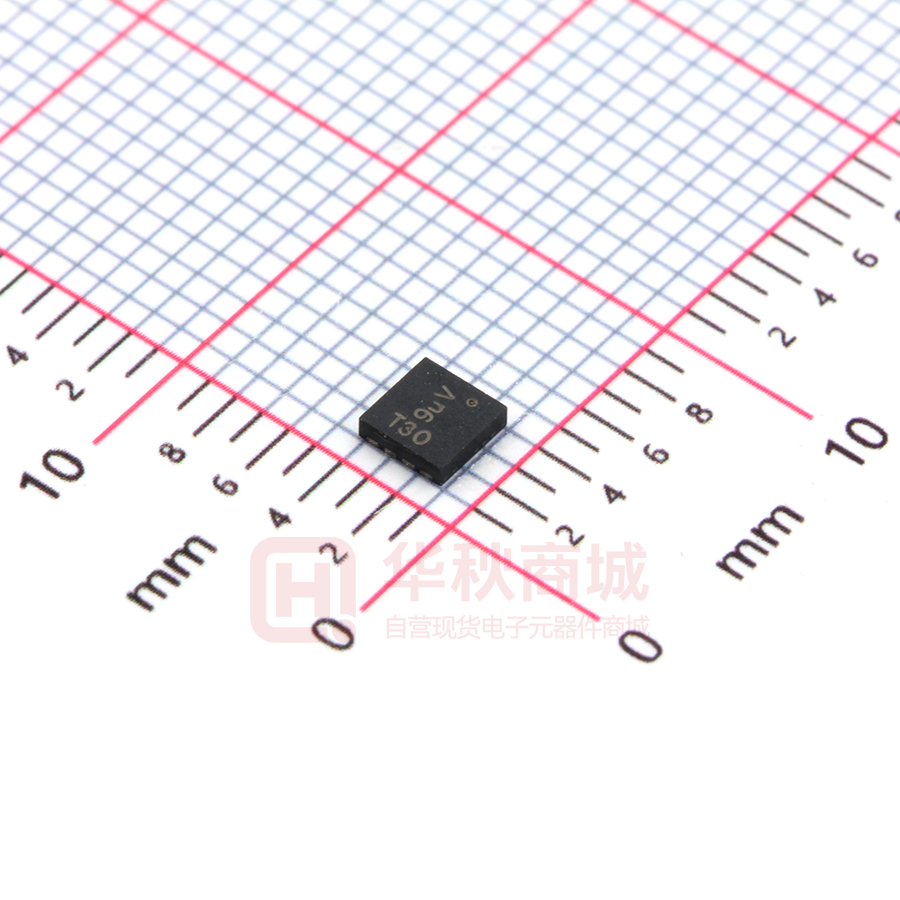

Case: V-DFN3030-8 (Type K)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Lead-Frame.
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.02 grams (Approximate)
V-DFN3030-8 (Type K)
S2
5
S2
6
S2
7
Q2
Q1
G2
8
S1/D2
D1
4
D1
PIN 1
PIN 1
Top View
Bottom View
3
D1
2
D1
1
G1
PIN 1
Bottom View
Internal Schematic
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMT3009LDT-7
DMT3009LDT-7A
Notes:
Case
V-DFN3030-8 (Type K)
V-DFN3030-8 (Type K)
Tape Width
8mm
12mm
Tape Pitch
4mm
8mm
Packaging
3,000/Tape & Reel
1,500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
