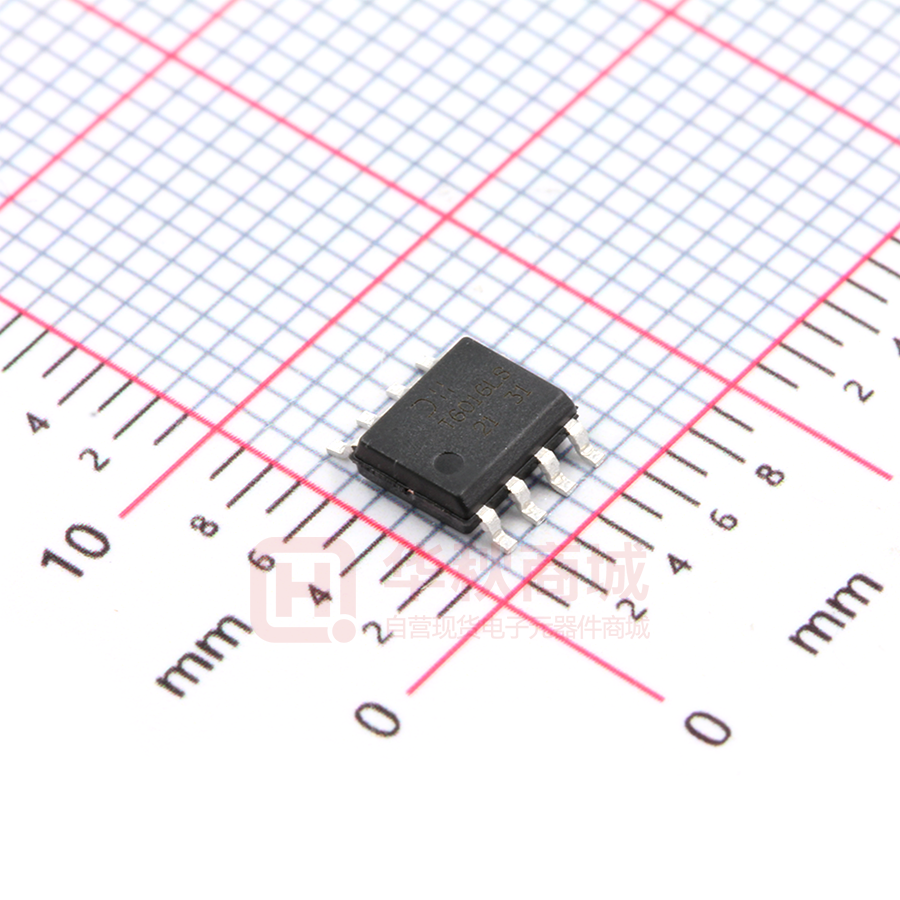

DMT6016LSS-13

DMT6016LSS 60V N-CHANNEL ENHANCEMENT MODE MOSFET NEW PRODUCT ADVANCEINFORMATION INFORMATION ADVANCED Product Summary Features and Benefits V(BR)DSS RDS(ON) max 60V 18mΩ @ VGS = 10V 28mΩ @ VGS = 4.5V • • • • • ID max TA = +25°C 9.2 A 7.5 A Low On-Resistance Low Input Capacitance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and maintain superior switching performance, making it • • ideal for high efficiency power management applications. • Load Switch • Adaptor Switch • Notebook PC • • • • Case: SO-8 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See diagram Terminals: Finish  Matte Tin annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.076 grams (approximate) D SO-8 Pin1 S D S D S D G D G S Pin-Out Top View Top View Equivalent Circuit Ordering Information (Note 4) Part Number DMT6016LSS-13 Notes: Case SO-8 Packaging 2500/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
